National Instruments PXI-2568 31-channel SPST relay module
1 image: Click to enlarge
National Instruments · PXI

PXI-2568

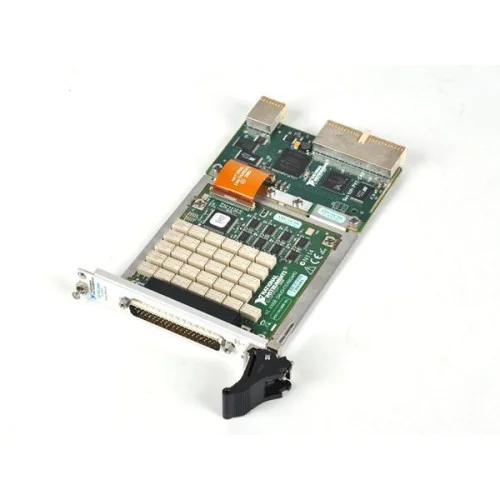

The National Instruments PXI-2568 is a software-programmable, general-purpose PXI switch with 31 independent latching SPST Form A armature relays for automated test equipment loads.

ManufacturerNational Instruments
ModelPXI-2568
Part Number778572-68
Product Type31-channel SPST relay module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2568

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Relay configuration31 independent SPST Form A relays
Relay behaviorLatching
Current per channel2 A maximum switching or carry
Signal connector62-pin D-Sub
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2568 provides independent relay connections rather than a shared multiplexer topology. Its latching armature relays combine low on-resistance with low thermal offsets.

Select loads using the voltage, current, and switching-power limits together. The specifications restrict signals to 100 Vrms, 150 Vpk, or 150 VDC and prohibit direct connection to mains supply circuits.
