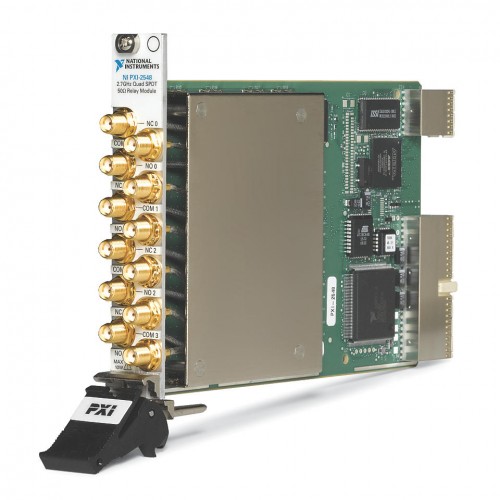

NI (National Instruments) PXI-2548 2.7 GHz, 50 Ω, Quad SPDT PXI RF Relay Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXI-2548

The NI PXI-2548, part number 778572-48, is a 2.7 GHz, 50 Ω quad SPDT PXI RF relay module. It provides four banks of electromechanical switching.

ManufacturerNI (National Instruments)
ModelPXI-2548
Part Number778572-48
Product Type2.7 GHz, 50 Ω, Quad SPDT PXI RF Relay Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2548

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Number of Banks4
Scan Rate45 cycles/s
Bus ConnectionPXI Hybrid
Maximum Carry Current AC0.5 A
Maximum Switching Voltage AC30 V
Relay ConfigurationSPDT
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2548 is a PXI RF switch module with four single-pole double-throw electromechanical relays arranged in four banks. Its specified switch bandwidth is 2.7 GHz, with a characteristic impedance of 50 Ω.

The module uses a PXI Hybrid bus connection and has no internal termination. Its switching limits and RF performance should be checked against the NI specifications when planning signal paths.

  • Four SPDT electromechanical relays in four banks.
  • 2.7 GHz switch bandwidth and 50 Ω characteristic impedance.
  • Specified scan rate of 45 cycles/s.
  • Maximum AC and DC switching voltage of 30 V; maximum DC switching current of 0.5 A.
  • Unterminated switching paths with row access.
Verified specifications

Technical data

Verified product specifications.

Number of Banks4
Scan Rate45 cycles/s
Bus ConnectionPXI Hybrid
Maximum Carry Current AC0.5 A
Maximum Switching Voltage AC30 V
Relay ConfigurationSPDT
Relay TypeElectromechanical
Switch Bandwidth2.7 GHz
Characteristic Impedence50 Ohm
TerminationNo
Supported Hardware PlatformPXI
Max Insertion Loss-0.65 dB
Maximum Switching Current DC0.5 A
Maximum Switching Voltage DC30 V
Mode (n-wire)1-wire
Number of Channels2
Number of Columns1
Number of Relays4
Number of Rows2
Row AccessYes
NI part numbers778572-48
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2548

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What switching topology does the PXI-2548 provide?

It provides four SPDT (single-pole double-throw) electromechanical relays arranged in four banks.

What are the bandwidth and impedance?

The specified switch bandwidth is 2.7 GHz, and the characteristic impedance is 50 Ω.

Does the PXI-2548 include termination?

No. The supplied verified specifications identify the module as unterminated.

What platform and bus connection does it use?

The PXI-2548 belongs to the PXI platform and is listed with a PXI Hybrid bus connection. Confirm the intended chassis and software configuration before integration.

Which NI part number is associated with this model?

The supplied structured product record identifies NI part number 778572-48 for the PXI-2548.
