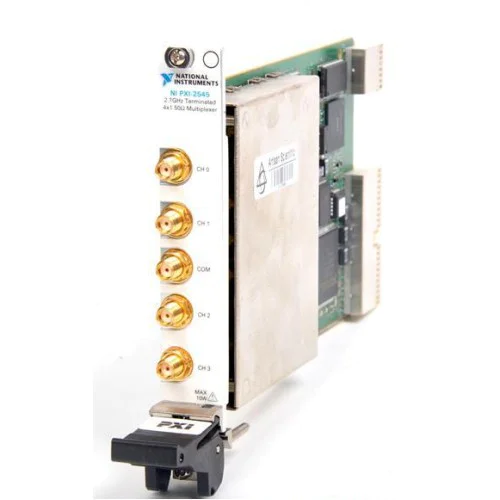

National Instruments PXI-2545 RF multiplexer switch module
1 image: Click to enlarge
National Instruments · PXI

PXI-2545

The National Instruments PXI-2545 is a 2.7 GHz, 4×1 terminated 50 Ω RF multiplexer switch module for the PXI platform. It provides SMA signal connections and built-in 50 Ω termination.

ManufacturerNational Instruments
ModelPXI-2545
Product TypeRF multiplexer switch module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2545

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Topology4×1 multiplexer
Bandwidth2.7 GHz
Impedance50 Ω, terminated
Signal connectorsSMA
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2545 provides a four-to-one RF switching topology in a PXI module. NI identifies this model specifically as a terminated 50 Ω multiplexer with 2.7 GHz bandwidth, distinguishing it from other switching configurations in the PXI-254x family.

Signal connections use SMA connectors. NI also lists the PXI-2545 in its single-ended, 1-wire multiplexer guidance; this topology does not directly support differential signal switching.

  • 4×1 RF multiplexer topology.
  • 2.7 GHz bandwidth with 50 Ω signal impedance.
  • Built-in 50 Ω termination.
  • SMA coaxial signal connections.
Verified specifications

Technical data

Verified product specifications.

PlatformPXI
Switch topology4×1 terminated multiplexer
Bandwidth2.7 GHz
Nominal impedance50 Ω
Signal connector typeSMA
Signal configuration1-wire, single-ended
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Module platform

PXI-2545

Terminated 4×1 RF multiplexer

Software evidence

NI-SWITCH 3.5 lists the PXI-2545 as supported hardware. Verify the intended driver and operating-system combination separately.

Confirm chassis slot support and driver requirements before integration; the 1-wire topology does not directly switch differential pairs.
