NI (National Instruments) · PXI

PXI-2530B

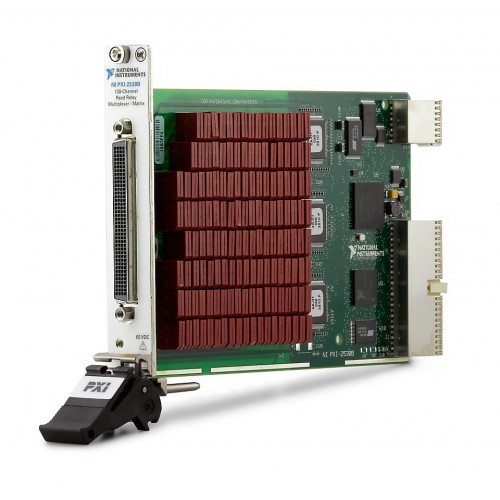

The NI PXI-2530B is a 128-channel reed-relay PXI multiplexer switch module supporting 1-wire, 2-wire, and 4-wire modes. Multiplexer and matrix configurations depend on the selected terminal block.

ManufacturerNI (National Instruments)

ModelPXI-2530B

Part Number778572-30

Product Type128-Channel, 1-, 2-, or 4-Wire PXI Multiplexer Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2530B

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Scan Rate900 cycles/s

Mode (n-wire)1-wire, 2-wire, 4-wire

Bus ConnectorPXI Hybrid

Maximum Switching Current DC0.4 A

Maximum Switching Voltage DC60 V

Relay TypeReed

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2530B, NI part number 778572-30, is a PXI switch module with a PXI Hybrid bus connector and reed relays. It provides up to 128 channels, with channel and bank arrangements determined by the switching configuration.

The module supports 1-wire, 2-wire, and 4-wire operation. Selecting the appropriate terminal block enables multiplexer or matrix configurations; verify the required topology and terminal block before integration.

Supports 1-wire, 2-wire, and 4-wire switching modes.
Provides 128 crosspoints with configuration-dependent channel counts of 16, 32, 64, or 128.
Supports configurations with 1, 2, 4, or 8 banks.
Uses reed relays with a specified scan rate of 900 cycles/s.
Maximum switching ratings include 60 V DC, 30 V AC, and 0.4 A DC.
Multiplexer and matrix configurations are implemented using the appropriate terminal block.

Verified specifications

Technical data

Verified product specifications.

Scan Rate	900 cycles/s
Mode (n-wire)	1-wire, 2-wire, 4-wire
Bus Connector	PXI Hybrid
Maximum Switching Current DC	0.4 A
Maximum Switching Voltage DC	60 V
Relay Type	Reed
Switch Bandwidth	12 MHz
Number of Channels	16, 32, 64, 128
Number of Banks	1, 2, 4, 8
Supported Hardware Platform	PXI
Bus Connection	PXI Hybrid
Crosspoints	128
Maximum Switching Voltage AC	30 V
Number of Columns	1
Number of Rows	8
Row Access	Yes
NI part numbers	778572-30

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2530B

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXI-2530B?

The supplied verified catalog data identifies NI part number 778572-30.

What switching modes does the PXI-2530B support?

It supports 1-wire, 2-wire, and 4-wire switching modes. Channel and bank counts depend on the selected configuration.

Can the PXI-2530B provide multiplexer and matrix configurations?

Yes. Multiplexer and matrix configurations can be implemented by selecting the appropriate terminal block. Confirm the specific topology and terminal block requirements in NI documentation.

What are the maximum DC switching ratings?

The listed maximum DC switching voltage is 60 V and maximum DC switching current is 0.4 A. Consult the specifications for applicable operating conditions before designing a switching circuit.

What relay type does the PXI-2530B use?

The PXI-2530B uses reed relays.
