NI (National Instruments) · PXI

PXI-2520

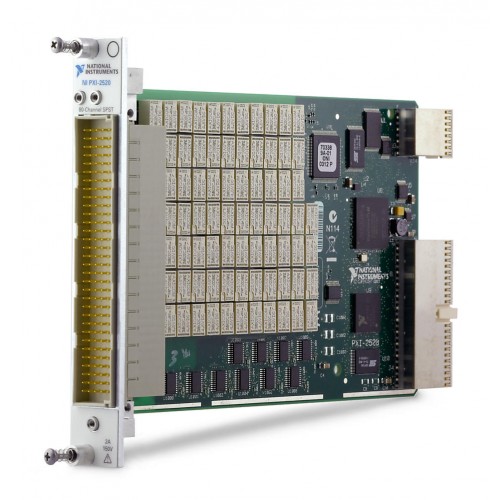

The NI PXI-2520 is an 80-channel electromechanical PXI relay module with independent SPST (normally open) relays. It supports maximum switching voltages of 150 V AC or DC and a maximum DC switching current of 2 A.

ManufacturerNI (National Instruments)

ModelPXI-2520

Part Number778572-20

Product Type80-Channel, 2 A, SPST PXI Relay Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2520

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Scan Rate145 cycles/s

Bus ConnectionPXI Hybrid

Maximum Switching Current DC2 A

Maximum Switching Voltage DC150 V

Relay ConfigurationSPST (open)

Switch Bandwidth35 MHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2520 provides 80 independent single-pole single-throw (SPST) Form A armature relays in the PXI platform. Its electromechanical relays are normally open and nonlatching, and the module has a PXI Hybrid bus connection.

The module is fully software programmable and supports onboard relay count tracking. Its relay design provides low on-resistance and low thermal offsets; row access is also supported.

80 channels with 80 independent electromechanical relays.
Nonlatching SPST Form A relays with normally open contacts.
Maximum switching voltage of 150 V AC or 150 V DC.
Maximum DC switching current of 2 A and maximum AC carry current of 2 A.
35 MHz switch bandwidth and a scan rate of 145 cycles/s.
Software-programmable operation with onboard relay count tracking.

Verified specifications

Technical data

Verified product specifications.

Scan Rate	145 cycles/s
Bus Connection	PXI Hybrid
Maximum Switching Current DC	2 A
Maximum Switching Voltage DC	150 V
Relay Configuration	SPST (open)
Switch Bandwidth	35 MHz
Number of Relays	80
Supported Hardware Platform	PXI
Maximum Carry Current AC	2 A
Maximum Switching Voltage AC	150 V
Number of Channels	80
Relay Type	Electromechanical
Row Access	Yes
NI part numbers	778572-20

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2520

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What relay configuration does the PXI-2520 use?

It uses 80 independent SPST Form A armature relays. The contacts are normally open, and the relays are nonlatching.

What are the voltage and current limits?

The recorded maximum switching voltages are 150 V AC and 150 V DC. Maximum DC switching current is 2 A, and maximum AC carry current is 2 A. These are separate ratings; consult the NI specifications for operating conditions before selecting a load.

Does the PXI-2520 support relay count tracking?

Yes. The module is fully software programmable and supports onboard relay count tracking.

What platform and interface does this module use?

The PXI-2520 is a PXI relay module with a PXI Hybrid bus connection. Confirm the specific chassis, controller, and software requirements before integration.
