National Instruments · PXI

PXI-1000B

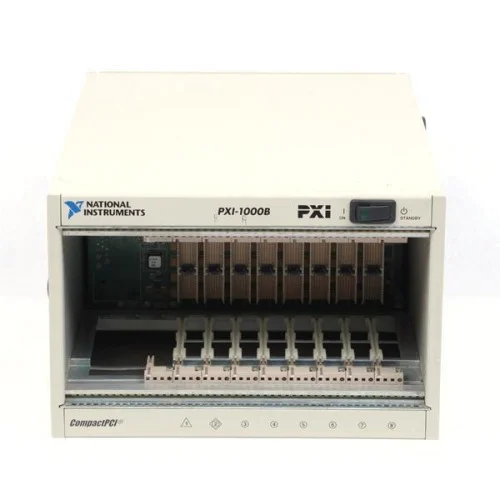

The National Instruments PXI-1000B is an eight-slot chassis for 3U PXI and CompactPCI modules.

ManufacturerNational Instruments

ModelPXI-1000B

Product Type8-slot 3U PXI chassis

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-1000B

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Slot count8 total

Module size3U

Power monitoringRemote monitoring and inhibit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The backplane integrates timing and triggering for modular measurement systems. Slot 1 serves the controller; slot 2 also supports star triggering.

Filtered fan cooling with selectable speed.
Removable modular power supply.
Rear connector supports remote power monitoring and inhibit.

Verified specifications

Technical data

Verified product specifications.

Total slots	8 slots
Module form factor	3U
System reference clock	10 MHz
Usable power, AC-only supply	300 W
Usable power, DC-capable supply	150 W
Estimated empty-chassis power draw, standard PXI-1000B	50; approximate, not the DC option W

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI / CompactPCI

Module platform

PXI-1000B

Chassis

Compatibility

Supports PXI and CompactPCI modules as described in the manual.

Confirm the installed supply variant before applying power ratings.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-1000B User Manual and SpecificationsUser Manual · download.ni.com

Open →

Additional Information About Your PXI-1000BManual Supplement · download.ni.com

Open →

NI Empty Chassis Power Draw ValuesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Are all eight slots peripheral slots?

No. Slot 1 is the system-controller slot.

Does every PXI-1000B provide 300 W?

No. The AC-only supply provides 300 W usable power; the DC-capable supply provides 150 W.

Does the AC-only version contain an internal fuse?

Yes. NI's manual supplement identifies an internal power-supply fuse in addition to the external AC mains circuit breaker.
