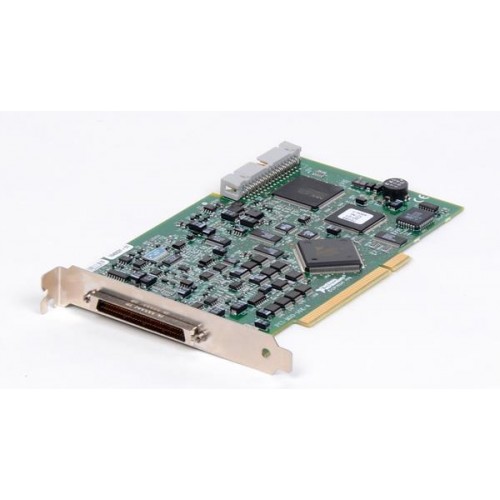

National Instruments PCI-MIO-16E-4 Multifunction data acquisition board
1 image: Click to enlarge
National Instruments · PCI

PCI-MIO-16E-4

The National Instruments PCI-MIO-16E-4, also identified by NI as PCI-6040E, is a multifunction PCI data acquisition board combining analog input, analog output, digital I/O and counter/timers.

ManufacturerNational Instruments
ModelPCI-MIO-16E-4
Product TypeMultifunction data acquisition board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-MIO-16E-4

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input resolution12-bit
Maximum sampling500 kS/s single-channel; 250 kS/s multichannel
Analog outputs2 channels, 12-bit
Digital I/O8 lines
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This E Series board combines multiple measurement and control functions on a PCI interface. NI documentation uses both PCI-MIO-16E-4 and PCI-6040E for this device.

  • Software-selectable single-ended or differential analog input configuration.
  • Two voltage outputs with 12-bit resolution.
  • Two 24-bit up/down counter/timers.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
Analog input resolution12 bits
Maximum single-channel sampling rate500 kS/s
Maximum multichannel scanning rate250 kS/s
Analog output channels2
Analog output resolution12 bits
Digital I/O lines8
Counter/timers2 up/down, 24-bit
I/O connector68-pin male 0.050 D-type
Dimensions excluding connectors17.5 × 10.7 cm
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host interface

PCI-MIO-16E-4

Multifunction DAQ board

Compatibility

NI-DAQ 7.4 lists this device as supported by both NI-DAQmx and Traditional NI-DAQ (Legacy). This is historical version-specific support, not confirmation of support in current software.

Verify the host interface, driver version, operating system and wiring before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6040E Family SpecificationsSpecifications · download.ni.com
Open →
NI-DAQ 7.4 ReadmeDriver Support Reference · download.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is PCI-MIO-16E-4 also called PCI-6040E?

Yes. NI's driver documentation lists the device as PCI-MIO-16E-4 (PCI-6040E).

Does this board have 12-bit or 16-bit analog input?

It has 12-bit analog input resolution.

Does the 500 kS/s rate apply to multichannel scanning?

No. NI specifies 500 kS/s for single-channel scanning and 250 kS/s for multichannel scanning.
