National Instruments · PCI

PCI-6713

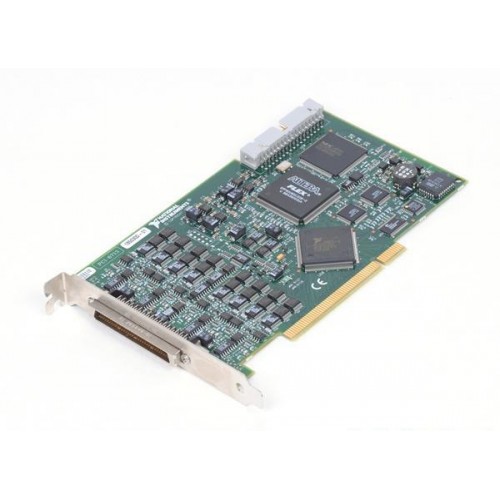

The National Instruments PCI-6713 provides eight 12-bit analog outputs with simultaneous multichannel updates for waveform generation and control. Its maximum update rate is 1 MS/s, subject to channel-count and data-source limits.

ManufacturerNational Instruments

ModelPCI-6713

Part Number777741-01

Product TypeAnalog output device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6713

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog outputs8 channels, 12-bit resolution

Maximum update rateUp to 1 MS/s; configuration-dependent

Digital I/O8 lines, 5 V TTL/CMOS

Counters/timers2 counters, 24-bit, 20 MHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6713 supports point-by-point waveform definition, including sine, square, sawtooth, and complex signals. Digital triggering and external clocking support coordinated signal generation.

This catalog record identifies the PCI board, not the separate PXI-6713 module. NI specifies a 5 V PCI interface and a 68-pin male SCSI-II-type I/O connector for the PCI-6713.

Simultaneous updates across multiple analog output channels.
Digital triggering and external clocking.
Integrated digital I/O and counter/timer functions.

Verified specifications

Technical data

Verified product specifications.

Analog output channels	8 channels
Analog output resolution	12 bits
Maximum analog update rate	1; depends on active channels and data source MS/s
Eight-channel continuous local-FIFO update rate	740 kS/s
Voltage output ranges	±10 V; ±external reference
Onboard FIFO	16384 samples
Digital I/O	8 lines, 5 V TTL/CMOS
Counters/timers	2; 24-bit resolution; 20 MHz
Bus interface	5 V PCI, master/slave
I/O connector	68-pin male SCSI-II type

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

5 V PCI

Host bus interface

PCI-6713

Analog output device

Accessory selection

NI places PCI-6713 in its Group 2 SCSI 68-pin analog output accessory category.

Verify the host's 5 V PCI support and the required channel-count update rate before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6713 Product PageProduct Page · ni.com

Open →

NI 6711/6713/DAQCard-6715 SpecificationsSpecifications PDF · docs-be.ni.com

Open →

NI 67xx Cable and Accessory Compatibility GuideCompatibility Guide · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can all eight channels continuously update at 1 MS/s from onboard memory?

No. NI specifies 740 kS/s for eight-channel continuous generation using the local FIFO. The 1 MS/s maximum applies to configurations with fewer active channels; host-memory performance also depends on the computer and bus activity.

Which cable does NI recommend for its SCSI connection?

NI recommends the SH68-68-EPM for SCSI 0.050 D-Type connections and states that the SH68-68-EP also works. Check the accessory guide for the complete cable and terminal-block combination.
