NI (National Instruments) PCI-6520 16-Channel, ±30 VDC, 8 Sink/Source Inputs, 8 Relay Outputs (60 V), Isolated Digital I/O Device

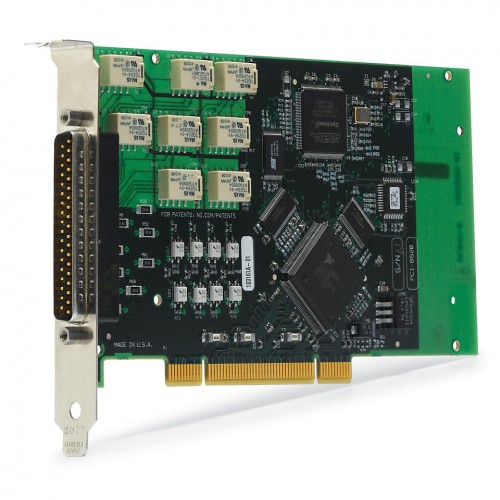

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-6520

The NI PCI-6520 is a PCI isolated digital I/O device with 8 sink/source digital inputs and 8 relay outputs. It provides 60 VDC channel-to-channel isolation.

ManufacturerNI (National Instruments)
ModelPCI-6520
Part Number779443-01
Product Type16-Channel, ±30 VDC, 8 Sink/Source Inputs, 8 Relay Outputs (60 V), Isolated Digital I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6520

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPCI
Digital Input Only Channels8
Digital Output Only Channels8
Digital Input Voltage Range-30 V to 30 V
Output Voltage Range0 V to 60 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6520 is a computer-based digital I/O device for a PCI host system. Its 16 channels are divided into 8 dedicated digital inputs and 8 dedicated relay outputs; there are no bidirectional channels. Inputs support -30 V to 30 V, while the listed output voltage range is 0 V to 60 V.

The device includes digital filtering, change detection, programmable power-up states, and digital I/O watchdogs for configurable safe output states. It uses a D-SUB front connection and provides 60 VDC channel-to-channel isolation.

  • 16 dedicated digital I/O channels: 8 sink/source inputs and 8 relay outputs.
  • PCI bus interface for a computer-based measurement or control system.
  • Input voltage range of -30 V to 30 V and output voltage range of 0 V to 60 V.
  • 60 VDC channel-to-channel isolation.
  • Digital filtering and change detection.
  • Programmable power-up states and digital I/O watchdogs.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPCI
Number of Digital Input Only Channels8
Number of Digital Output Only Channels8
Digital Input Voltage Range-30 V to 30 V
Output Voltage Range0 V to 60 V
Single-Ended Digital I/O Channel Current Drive2 A
Operating Temperature Range0 °C to 55 °C
Bus ConnectionPCI
Current Flow DirectionSinking Input, Sourcing Input, Sinking Output, Sourcing Output, Relay Output
Digital I/O Isolation60 VDC Ch-Ch Isolation
Digital I/O Logic Levels24 V
Front Connection TypeD-SUB
Signaling TypeSingle-Ended
Supported Hardware PlatformComputer-Based Device
NI part numbers779443-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCI-6520

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What interface does the NI PCI-6520 use?

The PCI-6520 uses a PCI bus connection.

How many input and output channels does the PCI-6520 provide?

It provides 8 dedicated sink/source digital inputs and 8 dedicated relay outputs, for 16 channels total. It has no bidirectional digital channels.

What are the PCI-6520 input and output voltage ranges?

The digital input voltage range is -30 V to 30 V, and the listed output voltage range is 0 V to 60 V. Consult the NI specifications for detailed operating limits before connecting field wiring.

Does the PCI-6520 provide isolation?

Yes. The device is specified with 60 VDC channel-to-channel isolation.

Which digital control features are included?
