National Instruments SH37F-P-4 Shielded female-to-pigtail I/O cable

1 image: Click to enlarge

National Instruments · NI I/O connectivity

NI SH37F-P-4

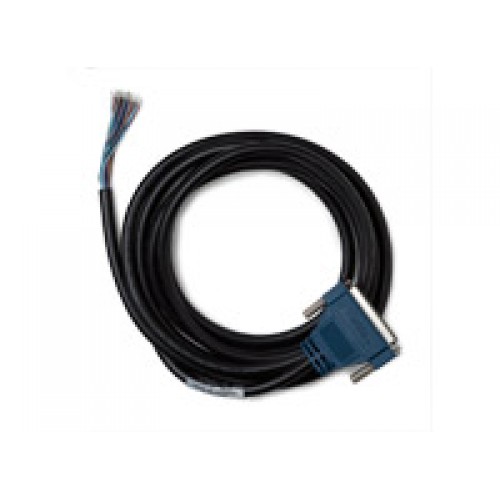

The NI SH37F-P-4 is a shielded I/O cable with a 37-pin female D-SUB connector and bare-wire pigtails for custom connections to supported NI hardware.

ManufacturerNational Instruments

ModelSH37F-P-4

Part Number778620-04

Product TypeShielded female-to-pigtail I/O cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH37F-P-4

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Part number778620-04

Device-side connector37-pin female D-SUB

TerminationBare-wire pigtails

ConstructionShielded; not twisted-pair
