National Instruments ELVIS RIO Control Module FPGA-based educational control module

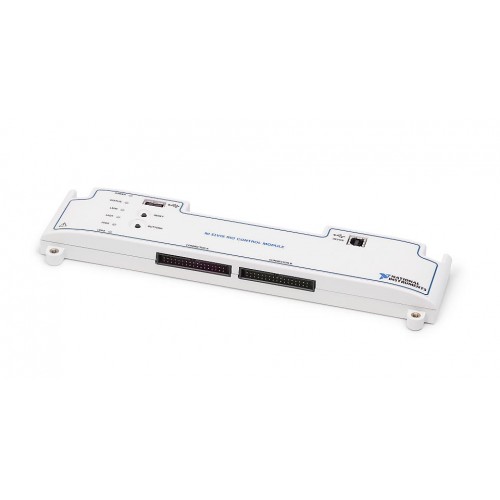

1 image: Click to enlarge
National Instruments · NI ELVIS II/II+

NI ELVIS RIO Control Module

The NI ELVIS RIO Control Module adds FPGA-based reconfigurable I/O and control to the NI ELVIS educational laboratory platform. It supports teaching and experimentation in mechatronics and power electronics.

ManufacturerNational Instruments
ModelELVIS RIO Control Module
Product TypeFPGA-based educational control module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: ELVIS RIO Control Module

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Laboratory platformNI ELVIS II/II+
Control architectureProcessor and FPGA
Expansion connectionsMXP A and B
ProgrammingLabVIEW or C
