National Instruments CAN OBD-II Cable Automotive CAN interface cable
1 image: Click to enlarge
National Instruments · NI CAN interfaces

NI CAN OBD-II Cable

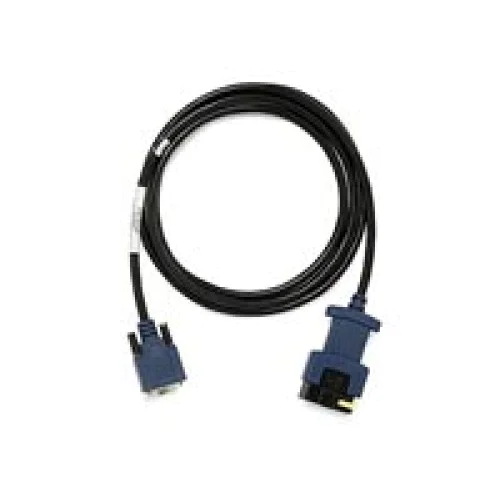

The NI CAN OBD-II Cable connects an NI high-speed CAN interface to an OBD-II vehicle with high-speed CAN at its diagnostic connector. NI also identifies this cable as the OBDII9M-DB9F CAN Cable, part 193942-02.

ManufacturerNational Instruments
ModelCAN OBD-II Cable
Part Number193942-02
Product TypeAutomotive CAN interface cable
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CAN OBD-II Cable

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Part number193942-02
Length2 m
ConnectorsSAE J1962 male to 9-pin D-sub female
TerminationNone
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This cable maps the vehicle's SAE J1962 CAN connections to the CiA-DS-102 D-sub wiring used by NI CAN interfaces. It provides the physical connection for accessing a vehicle's high-speed CAN network through its passenger-compartment diagnostic connector.

  • Locking tab helps prevent accidental disconnection from the vehicle.
  • Injection-molded cable construction.
  • Two unshielded 24 AWG twisted pairs carry CAN signals and supply connections.
Verified specifications

Technical data

Verified product specifications.

Cable length2 m
Vehicle connectorSAE J1962 OBD-II male
Interface connector9-pin D-sub female
TerminationNonterminated
Cable impedance120 Ω
Resistance at 20 °C93 Ω/km
Propagation delay5 ns/m
D-sub signal assignments2: CAN_L; 3: V−; 5: shield; 7: CAN_H; 9: V+
SAE J1962 signal assignments5: V−; 6: CAN_H; 14: CAN_L; 16: V+
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI high-speed CAN

Host interface

CAN OBD-II Cable

Vehicle connection accessory

Compatibility

NI lists PCI, PXI, USB, PCMCIA and CompactRIO CAN interfaces; the selected interface must support the required high-speed CAN connection.

The vehicle diagnostic connector must carry high-speed CAN. This cable has no built-in termination.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications for the CAN OBD-II CableSpecifications And Wiring Reference · ni.com
Open →
OBDII9M-DB9F CAN CableOfficial Product Page · ni.com
Open →
OBDII9M-DB9F CAN Cable Product CertificationsCertification Reference · ni.com
Open →
CAN Physical Layer and Termination GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this the same cable NI calls OBDII9M-DB9F?

Yes. NI explicitly identifies CAN OBD-II Cable as an alternative name for OBDII9M-DB9F, part 193942-02.

Does it include a termination resistor?

No. Part 193942-02 is nonterminated; its 120 Ω cable impedance is not a built-in termination resistor.

Can it connect to every OBD-II vehicle?

NI specifies vehicles that expose high-speed CAN at the diagnostic connector; an OBD-II connector alone does not establish suitability.

Ask SOHO AssistantProduct & compatibility help
