National Instruments NI-9853 2-port high-speed C Series CAN interface module

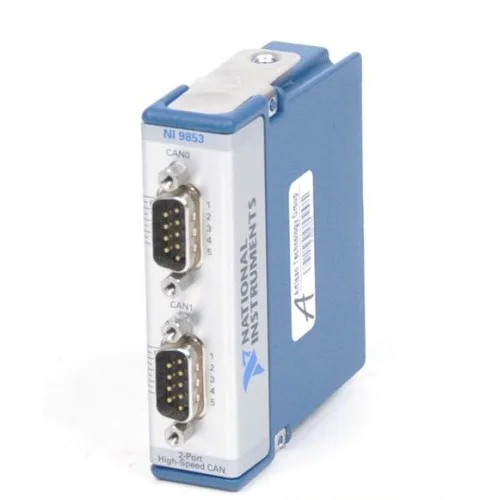

1 image: Click to enlarge
National Instruments · CompactRIO

NI-9853

The NI-9853 is a two-port high-speed CAN interface module for CompactRIO FPGA applications. It provides independent, isolated CAN ports supporting CAN 2.0B communication at rates up to 1 Mbps.

ManufacturerNational Instruments
ModelNI-9853
Product Type2-port high-speed C Series CAN interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9853

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
CAN ports2 independent high-speed ports
Maximum CAN rate1 Mbps
PlatformCompactRIO, FPGA programming
ConnectorsTwo 9-pin male D-Sub connectors
CAN1 powerExternal +8 to +25 V supply required
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9853 adds high-speed CAN communication to CompactRIO systems through a C Series module interface. It is intended for low-level control, triggering, and byte-level CAN frame manipulation using the LabVIEW FPGA Module and NI-RIO software.

Each CAN port is isolated from the other port and from other modules in the system. CAN0 is internally powered, while CAN1 requires an external supply connected through its VSUP pin. This difference is important when wiring and commissioning a two-port application.

  • Two independent CAN ports with isolation between ports and from other system modules.
  • CAN 2.0B-compatible controllers support both 11-bit and 29-bit identifiers.
  • ISO 11898-compatible high-speed CAN transceivers support communication up to 1 Mbps.
  • LabVIEW FPGA access supports low-level CAN frame manipulation and custom control logic.
Verified specifications

Technical data

Verified product specifications.

Number of CAN ports2 ports
CAN physical layerHigh-speed, ISO 11898-compatible
Maximum CAN bit rate1 Mbps
CAN protocolCAN 2.0B; 11-bit and 29-bit identifiers
CAN connectorsTwo 9-pin male D-Sub connectors
CAN0 powerInternally powered
CAN1 external supply+8 to +25 V
Operating temperature-40 to +70 °C
EnclosedYes
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Supported hardware platform

C Series NI-9853

FPGA-accessed high-speed CAN interface module

Development environment

LabVIEW FPGA Module with NI-RIO support

Do not select this module for CompactDAQ operation. Verify the CompactRIO target and software combination, and provide external power for CAN1.
