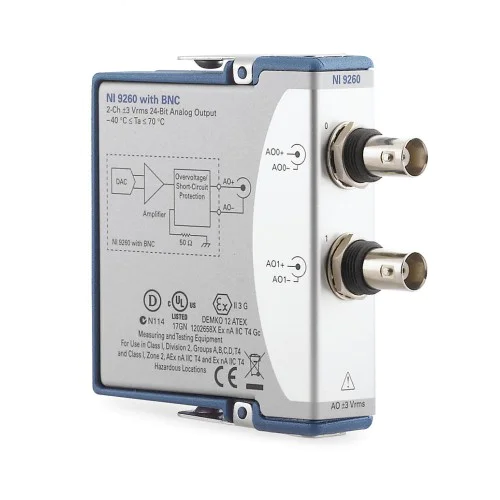

The NI-9260 is a two-channel dynamic signal generation module with 24-bit resolution, simultaneous updates up to 51.2 kS/s/ch, and a 3 Vrms output range.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Designed for audio-component testing and structural-test excitation, the NI-9260 provides instrument-grade signal generation within a modular NI system.
The model family includes BNC and mini-XLR versions with different output-stage arrangements. Confirm the physical connector and module label before selecting wiring.
Verified product specifications.
| Analog output channels | 2 channels |
|---|---|
| DAC resolution | 24 bits |
| Maximum simultaneous update rate | 51.2 kS/s/ch |
| Output range | 3 Vrms |
| Minimum working load | 600 Ω |
| Output impedance | 1 Ω |
| Isolation | None, channel-to-channel or channel-to-earth ground |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host platforms
C Series analog output module
NI documents use in CompactDAQ and CompactRIO systems; verify the specific chassis, software version, and operating mode using NI's compatibility matrix.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It is a two-channel analog voltage output module for dynamic signal generation.
No. BNC outputs are pseudo-differential; mini-XLR outputs are balanced and fully differential. Do not ground the mini-XLR AO− output.
