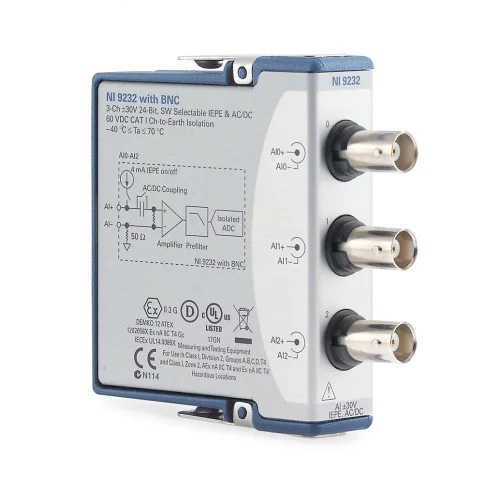

National Instruments NI-9232 C Series Sound and Vibration Input Module
1 image: Click to enlarge
National Instruments · CompactDAQ / CompactRIO

NI-9232

The NI-9232 is a three-channel C Series module for sound and vibration measurements from IEPE and non-IEPE sensors. It combines simultaneous acquisition with software-selectable coupling and built-in signal conditioning.

ManufacturerNational Instruments
ModelNI-9232
Product TypeC Series Sound and Vibration Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9232

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs3 simultaneous analog input channels
SamplingUp to 102.4 kS/s/channel
Input range±30 V
Resolution24-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for modular measurement systems, the NI-9232 operates in NI CompactDAQ or CompactRIO systems. Its dynamic signal acquisition architecture supports industrial sensor measurements.

Connector selection requires attention: NI identifies 782000-01 as the screw-terminal version and 784397-01 as the BNC version. The supplied catalog information references both 782000-01 and BNC connections, so the exact hardware variant remains unresolved.

  • Software-selectable AC or DC input coupling.
  • Selectable IEPE excitation of 0 or 4 mA.
  • Built-in anti-aliasing filters automatically track the sample rate.
  • IEPE open- and short-circuit detection.
Verified specifications

Technical data

Verified product specifications.

Analog input channels3 channels
ADC resolution24 bits
Sampling modeSimultaneous
Maximum sample rate using internal master timebase102.4 kS/s/channel
Analog input range-30 to +30 V
Channel-to-earth isolation60 VDC, CAT I
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Measurement system platforms

NI-9232

C Series dynamic signal acquisition module

Compatibility

Supports NI CompactDAQ and NI CompactRIO systems; consult NI's hardware compatibility tables for the intended configuration.

Confirm the connector variant and check the selected chassis and software configuration before system integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9232 Official Product Page and Variant ComparisonProduct Page · ni.com
Open →
NI 9232 DatasheetDatasheet · download.ni.com
Open →
NI-9232 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
C Series Module and CompactDAQ or CompactRIO Hardware Compatibility with LabVIEWTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9232 support smart TEDS sensors?

Yes. The datasheet specifies IEEE 1451.4 TEDS Class I support.

Does part number 782000-01 identify the BNC version?

No. NI lists 782000-01 with screw terminals; the BNC version is 784397-01. Confirm the module label and connectors because this catalog record contains conflicting variant information.
