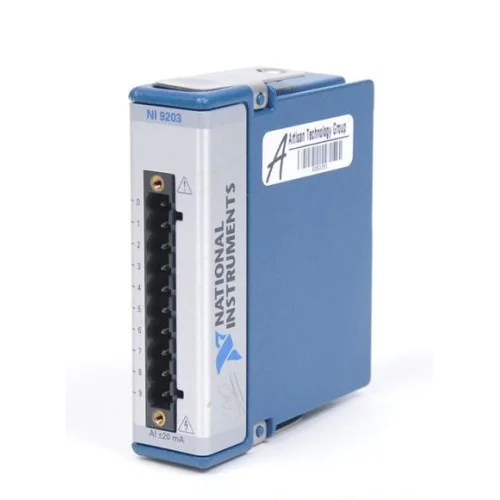

National Instruments NI-9203 C Series Current Input Module
1 image: Click to enlarge
National Instruments · CompactDAQ / CompactRIO

NI-9203

The NI-9203 is an eight-channel C Series current input module with 16-bit resolution and programmable bipolar or unipolar current ranges. It supports sampling up to 200 kS/s for control and monitoring applications.

ManufacturerNational Instruments
ModelNI-9203
Part Number779516-02
Product TypeC Series Current Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9203

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs8 analog current channels
Resolution16 bits
Nominal ranges±20 mA or 0–20 mA
Maximum sampling200 kS/s; 192 kS/s with R Series Expansion chassis
Sampling architectureMultiplexed; not simultaneous
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for current measurement in control and monitoring systems, the NI-9203 buffers and conditions its inputs before conversion by a shared 16-bit ADC.

NI offers screw-terminal and spring-terminal versions. The catalog tag identifies 779516-02, which NI lists as the conformally coated screw-terminal version; confirm the physical part number when selecting variant-specific documentation.

  • Programmable unipolar and bipolar current measurement ranges.
  • Single SAR ADC shared across eight input channels.
  • Channel-to-earth isolation rather than individual channel-to-channel isolation.
  • Channel-to-COM overvoltage protection up to ±30 V on one channel at a time.
Verified specifications

Technical data

Verified product specifications.

Analog input channels8 channels
ADC resolution16 bits
ADC typeSuccessive approximation register (SAR)
Nominal input ranges−20 to +20; 0 to 20 mA
Maximum sample rate200; 192 with R Series Expansion chassis kS/s
Minimum conversion time5; 5.2 with R Series Expansion chassis µs
Channel-to-channel isolationNone
Operating temperature−40 to +70 °C
Front connection for 779516-02Screw terminal
Conformal coating for 779516-02Yes
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

C Series

Module family and chassis interface

NI-9203

Current input module

System platforms

CompactDAQ and CompactRIO; consult NI's hardware compatibility matrix for controller and programming-mode support.

Confirm the module part number, terminal style, and chassis/software support before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9203 Product Page and Variant ComparisonProduct Page · ni.com
Open →
NI-9203 SpecificationsSpecifications · ni.com
Open →
NI 9203 Getting Started GuideGetting Started Guide · download.ni.com
Open →
C Series Module and CompactDAQ/CompactRIO Hardware CompatibilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9203 sample all channels simultaneously?

No. Its inputs share a single ADC through a multiplexer; 200 kS/s is not a simultaneous per-channel rating.

Which current ranges are programmable?

The nominal ranges are ±20 mA and 0–20 mA.

What distinguishes part number 779516-02?

NI identifies 779516-02 as the conformally coated screw-terminal NI-9203. The non-coated screw-terminal version is 779516-01.
