National Instruments NB5 Ribbon cable assembly

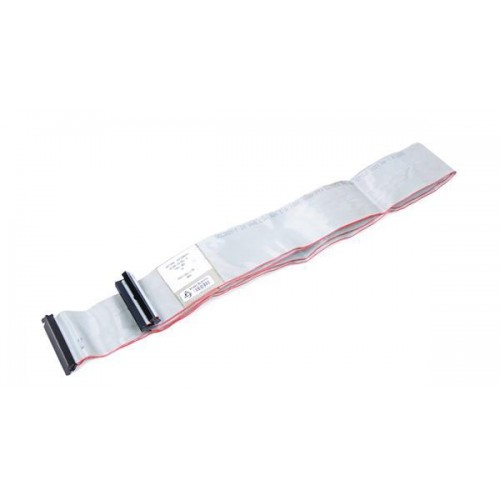

1 image: Click to enlarge

National Instruments · PC-DIO-96 / PC-DIO-96/PnP

NB5

The National Instruments NB5 is a ribbon cable assembly with one 100-pin connector and two 50-pin connectors. It provides signal connections for PC-DIO-96 and PC-DIO-96/PnP digital I/O boards.

ManufacturerNational Instruments

ModelNB5

Product TypeRibbon cable assembly

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NB5

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Cable typeRibbon cable assembly

Connector layoutOne 100-pin connector to two 50-pin connectors

Supported boardsPC-DIO-96 and PC-DIO-96/PnP

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NB5 is a cabling accessory, not a portable computer or standalone measurement instrument. NI documents its use in the NB5-equipped CB-100 connector-block assembly for bringing external signals to the PC-DIO-96.

For wiring work, consult the board manual together with NI's cable comparison and pinout article. Connector count alone is not sufficient to establish interchangeability with other 100-pin NI cables.

Branches a single 100-pin board connection into two 50-pin cable ends.
The 50-pin branches identify positions 1–50 and 51–100.
The CB-100 installation guide documents centered alignment tabs on the 50-pin connectors.
