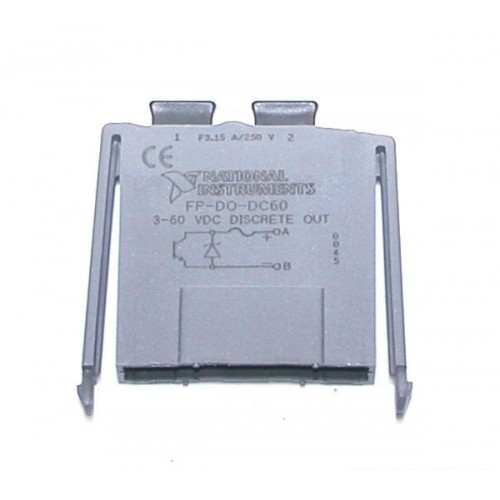

National Instruments FP-DO-DC60 DC discrete output module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-DO-DC60

The FP-DO-DC60 provides two isolated DC outputs in a FieldPoint system.

ManufacturerNational Instruments

ModelFP-DO-DC60

Product TypeDC discrete output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-DO-DC60

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Voltage range3–60 VDC

Channels2 isolated outputs

Terminal baseFP-TB-10

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Each channel supports sinking or sourcing wiring through the terminal base.

Individual green channel-state LEDs.
Replaceable fuse per channel.
Temperature-dependent output current capacity.

Verified specifications

Technical data

Verified product specifications.

Output voltage range	3–60 VDC
Current per channel	0.75 at 25 °C; 0.40 at 40 °C; 0.20 at 60 °C A
Voltage drop	1.3 at 0.75 A V
Maximum leakage	1.5 mA
Maximum output delay	60 ms

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O platform

FP-TB-10

Terminal base

FP-DO-DC60

Output module

Observe current derating; channel isolation is not a channel-to-channel safety isolation rating.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which base does it use?

The FP-TB-10.
