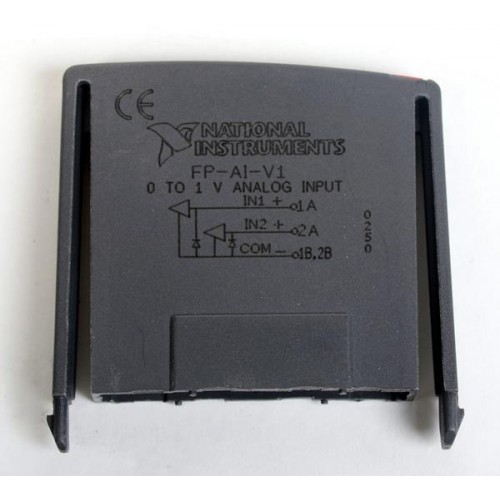

National Instruments FP-AI-V1 Analog voltage input module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-AI-V1

The NI FP-AI-V1 is a two-channel FieldPoint module for 0–1 V measurements.

ManufacturerNational Instruments

ModelFP-AI-V1

Product TypeAnalog voltage input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-AI-V1

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs2 single-ended

Range0–1 V

Resolution12 bits

Terminal baseFP-TB-10

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The module connects voltage sources through the FP-TB-10. Both channels share a common reference.

Selectable 20 Hz or 2 kHz filtering per channel.
2.2 MΩ input impedance.
±30 V input protection.

Verified specifications

Technical data

Verified product specifications.

Input channels	2 single-ended
Input range	0 to 1 V
Measurement resolution	12 bits
Voltage resolution	244 µV
Input impedance	2.2 MΩ
Programmable bandwidth	20 Hz or 2 kHz
Input protection	±30 V
Operating temperature	−20 to +70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O platform

FP-TB-10

Terminal base

FP-AI-V1

Voltage input module

The two channels are not isolated from each other.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does FP-AI-V1 measure bipolar voltages?

Its specified measurement range is unipolar, 0–1 V.

Where are the signal connections?

Use the FP-TB-10 terminals: “a” is positive; “b” is the shared reference.
