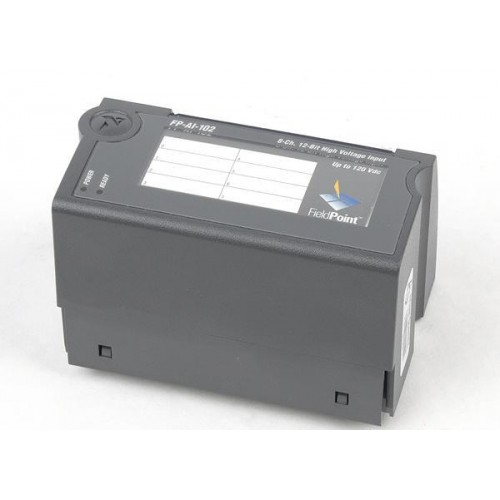

National Instruments FP-AI-102 Analog voltage input module
1 image: Click to enlarge
National Instruments · FieldPoint

FP-AI-102

The NI FP-AI-102 provides eight single-ended, 12-bit voltage inputs for FieldPoint systems.

ManufacturerNational Instruments
ModelFP-AI-102
Product TypeAnalog voltage input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-AI-102

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels8 single-ended
Resolution12 bits
MountingFP-TB-x terminal base
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The module receives operating power through its terminal base. Network configuration and access depend on the FieldPoint network module.

  • Software-selectable range per channel.
  • Hot plug-and-play installation.
  • POWER and READY indicators.
Verified specifications

Technical data

Verified product specifications.

Input ranges0–20, 0–60, 0–120, ±20, ±60, ±120 V
All-channel update rate360 Hz
Input impedance1.0 MΩ
Signal input bandwidth170 Hz
Operating temperature−40 to 70 °C
Channel-to-channel isolationNone; shared COM reference
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O platform

FP-AI-102

Voltage input

Compatibility

Mounts on FieldPoint FP-TB-x terminal bases.

Channels are not individually isolated. Follow the manual’s hazardous-voltage wiring precautions.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-AI-102 and cFP-AI-102 Operating InstructionsOperating Instructions · download.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does FP-AI-102 use a Compact FieldPoint backplane?

No. FP-AI-102 mounts on an FP-TB-x terminal base; cFP-AI-102 uses a Compact FieldPoint backplane.
