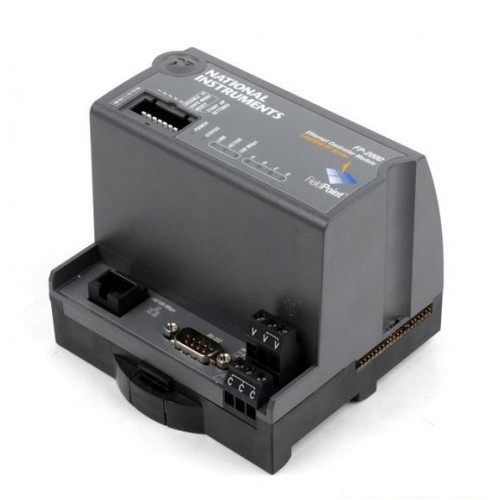

National Instruments FP-2000 Ethernet real-time controller

1 image: Click to enlarge

National Instruments · FieldPoint

FP-2000

The NI FP-2000 is a FieldPoint Ethernet controller for a configurable bank of distributed I/O modules. Programmed with LabVIEW Real-Time, it supports networked or stand-alone measurement and control.

ManufacturerNational Instruments

ModelFP-2000

Product TypeEthernet real-time controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-2000

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Network10/100 Mbps Ethernet, auto-negotiated

ProgrammingLabVIEW Real-Time

Supply input11–30 VDC

DRAM16 MB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The FP-2000 combines Ethernet communication with embedded execution of LabVIEW Real-Time applications. Its modular FieldPoint architecture lets a system use selected I/O modules for the required measurement and control signals.

NI specifies FieldPoint for static installations and recommends mounting the system on a single 35 mm DIN rail inside an instrumentation cabinet.

Executes application logic locally as a network node or stand-alone controller.
Configurable I/O architecture supports distributed measurement and control.
RJ-45 Ethernet connection for network integration.

Verified specifications

Technical data

Verified product specifications.

Ethernet interface	10BaseT and 100BaseTX
Communication rates	10 or 100, auto-negotiated Mbps
Supply voltage	11–30 VDC
DRAM	16 MB
Operating temperature	-25 to 55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Modular distributed I/O platform

FP-2000

Ethernet controller running LabVIEW Real-Time applications

System configuration

Requires terminal bases, I/O modules and an external DC supply.

Connect terminal bases before applying controller power; do not connect or disconnect bases while powered.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-2000/2010/2015 User ManualUser Manual · ni.com

Open →

FieldPoint FP-20xx Quick Start Guide, Revision EQuick Start Guide · download.ni.com

Open →

Building Intelligent Ethernet-Based Measurement and Control SystemsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the FP-2000 run without continuous host-PC execution?

Yes. NI describes the FP-2000 family as capable of stand-alone operation using a real-time operating system and flash memory.

How much nonvolatile memory does the FP-2000 have?

NI documentation differs: revision D of the quick start guide specifies 16 MB, while revision E specifies 32 MB. Confirm the actual unit before sizing stored applications or data.
