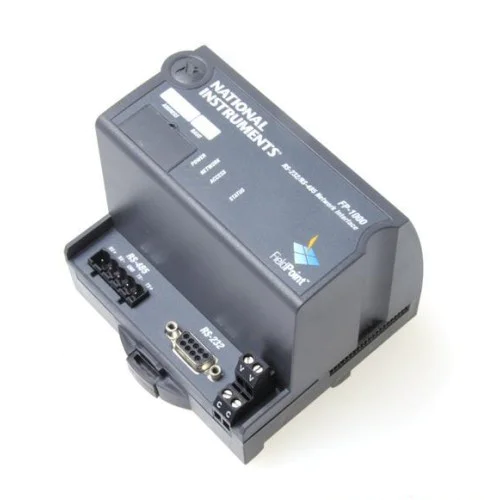

National Instruments FP-1000 Serial network interface module
1 image: Click to enlarge
National Instruments · FieldPoint

FP-1000

The NI FP-1000 connects a host RS-232 port to FieldPoint I/O. Its RS-485 repeater supports additional FP-1001 banks.

ManufacturerNational Instruments
ModelFP-1000
Product TypeSerial network interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-1000

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformFieldPoint
Host connectionRS-232
Bank capacityUp to nine I/O modules
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The FP-1000 is the communications interface, not an analog or digital measurement module. A FieldPoint system also requires terminal bases and separate I/O modules.

  • Optomux-based communications with FieldPoint extensions.
  • Network watchdog and programmable power-up states.
  • POWER, NETWORK, ACCESS, and STATUS indicators.
Verified specifications

Technical data

Verified product specifications.

Host interfaceRS-232
Expansion interfaceRS-485 repeater
Maximum I/O modules per bank9 modules
Operating temperature-40 to +70 °C
Host serial cable9-pin D-sub male-to-female, straight-through
Mounting35 mm DIN rail; panel mounting with optional accessory
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O platform

FP-1000

Serial network interface

Compatibility

FP-1001 expansion uses four-wire, full-duplex RS-485 wiring.

Select terminal bases and I/O modules separately; channel capabilities depend on the installed I/O modules.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-1000/1001 User ManualUser Manual · download.ni.com
Open →
FieldPoint FP-1000/1001 User Manual, August 1998Earlier User Manual · download.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which serial cable does the FP-1000 require?

Use a 9-pin D-sub male-to-female straight-through cable, not a null-modem cable.

How does the FP-1001 work with the FP-1000?

Up to 24 FP-1001 network modules can connect through the FP-1000 RS-485 repeater port.
