ExpressCard-GPIB

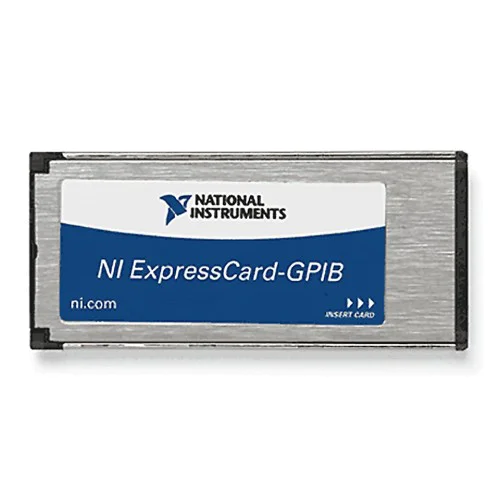

The National Instruments ExpressCard-GPIB connects an ExpressCard-equipped computer to GPIB instruments. Its 34 mm card fits both ExpressCard/34 and ExpressCard/54 slots.

ManufacturerNational Instruments

ModelExpressCard-GPIB

Product TypeGPIB instrument control interface

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: ExpressCard-GPIB

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host formatExpressCard/34

3-wire transfer rateUp to 1830 kbytes/s

HS488 transfer rateUp to 7230 kbytes/s

DriverNI-488.2; hardware and OS support depend on release

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

ExpressCard-GPIB provides a computer-to-instrument GPIB connection through an ExpressCard slot. NI documents installation and cabling in its GPIB hardware guide.

For legacy system integration, check the driver release as well as the physical slot. NI-488.2 for Windows 21.5 lists ExpressCard-GPIB support for Windows 10, Server 2016, and Server 2019, but not LabVIEW Real-Time. That release identifies the hardware as end-of-life and not recommended for new designs.

34 mm card compatible with ExpressCard/34 and ExpressCard/54 slots.
Supports conventional 3-wire GPIB and HS488 transfers.
Supported by documented NI-488.2 driver releases.

Verified specifications

Technical data

Verified product specifications.

Host connector	ExpressCard/34 standard interface
Maximum 3-wire transfer rate	1830 kbytes/s
Maximum HS488 transfer rate	7230 kbytes/s
Operating ambient temperature	0 to 65 °C
Dimensions	3.4 × 7.5 × 0.5 cm
GPIB connection	26-position latching connector; cable connects to IEEE 488 24-pin

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

ExpressCard/34

Computer expansion interface

ExpressCard-GPIB

GPIB instrument interface

Software

NI-488.2; consult the specific release readme for supported operating systems.

Verify both ExpressCard slot fit and NI-488.2 release support before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

GPIB Hardware Installation Guide and SpecificationsInstallation Guide And Specifications · docs-be.ni.com

Open →

NI ExpressCard/34 Hardware Compatibility in an ExpressCard/54 SlotCompatibility Article · knowledge.ni.com

Open →

NI-488.2 for Windows 21.5 ReadmeDriver Release Documentation · ni.com

Open →

MAX Error with NI GPIB Device — Driver Not AssociatedTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Will ExpressCard-GPIB fit an ExpressCard/54 slot?

Yes. NI explicitly identifies ExpressCard-GPIB as a 34 mm card compatible with both 34 mm and 54 mm ExpressCard slots.

Which driver supports ExpressCard-GPIB?

NI-488.2 supports this interface in documented releases. For example, the Windows 21.5 readme lists support under Windows 10, Server 2016, and Server 2019. Do not assume that this establishes support under other operating systems or driver releases.

Is ExpressCard-GPIB recommended for new designs?

NI's NI-488.2 for Windows 21.5 readme identifies ExpressCard-GPIB as end-of-life and not recommended for new designs.
