National Instruments DAQPAD-1200 Multifunction data acquisition unit

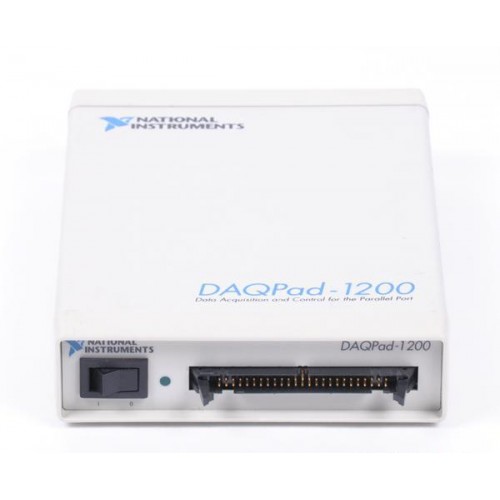

1 image: Click to enlarge

National Instruments · PC parallel-port data acquisition

DAQPAD-1200

The NI DAQPad-1200 is an external parallel-port DAQ unit combining analog I/O, digital I/O and counter/timers.

ManufacturerNational Instruments

ModelDAQPAD-1200

Product TypeMultifunction data acquisition unit

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DAQPAD-1200

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs8 single-ended or 4 differential

Analog outputs2 channels, 12-bit

Digital I/O24 TTL-compatible lines

Legacy driverNI-DAQ 6.9.3 in NI's archived support matrix

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Software planning is essential: NI lists this device among products requiring NI-DAQ 6.9.x or earlier, rather than NI-DAQmx or Traditional NI-DAQ 7.x.

Software-selectable analog input configuration.
Supports original unidirectional and Enhanced Parallel Ports.
Second parallel connector provides transparent pass-through.

Verified specifications

Technical data

Verified product specifications.

ADC resolution	12 bit
Counter/timers	3 counters, 16-bit each
Front signal connector	50-pin male ribbon-cable header
DC supply range	9–42 VDC

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PC parallel port

Host interface

DAQPad-1200

External multifunction DAQ

Driver generation

NI-DAQ 6.9.x or earlier; not supported by NI-DAQmx or Traditional NI-DAQ 7.x.

Confirm the host parallel port, operating system and legacy driver combination before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

DAQPad-1200 User Manual, November 1995User Manual · download.ni.com

Open →

Archived Driver Support: Legacy Portable DevicesDriver Support Matrix · ni.com

Open →

NI-DAQmx 8.5 Readme: Legacy Device ExclusionsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the DAQPad-1200 a USB device?

No. It communicates through a PC parallel port.

Can I use NI-DAQmx with the DAQPad-1200?

No. NI specifies NI-DAQ 6.9.x or earlier for this device and excludes it from NI-DAQmx and Traditional NI-DAQ 7.x support.
