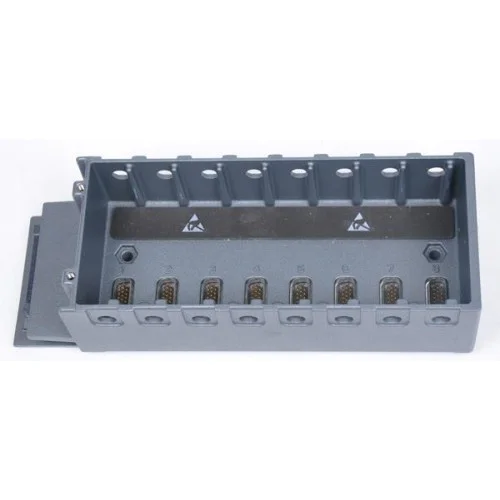

The NI cRIO-9116 is an eight-slot CompactRIO chassis with a Virtex-5 LX85 FPGA for C Series I/O. It requires a compatible CompactRIO controller.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This chassis provides the reconfigurable I/O portion of a modular CompactRIO system. A compatible controller communicates with the installed C Series modules.
Scan Mode supports real-time system expansion; FPGA programming enables inline processing and high-speed I/O and control.
Verified product specifications.
| I/O slot count | 8 slots |
|---|---|
| FPGA type | Virtex-5 LX85 |
| FPGA flip-flops | 51,840 |
| FPGA 6-input LUTs | 51,840 |
| DSP48 slices | 48 |
| Embedded FPGA block RAM | 3,456 kbits |
| Operating temperature | -40 to 70; thermally conductive mounting required at 56 to 70 °C |
| Approximate chassis weight | 880 g |
| Ingress protection | IP40 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular embedded system platform
Eight-slot FPGA chassis
Chassis, compatible real-time controller, and C Series I/O modules.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It is an FPGA chassis requiring a compatible CompactRIO controller.
The LX85 provides 51,840 flip-flops, 51,840 six-input LUTs, 48 DSP48 slices, and 3,456 kbits of embedded block RAM.
