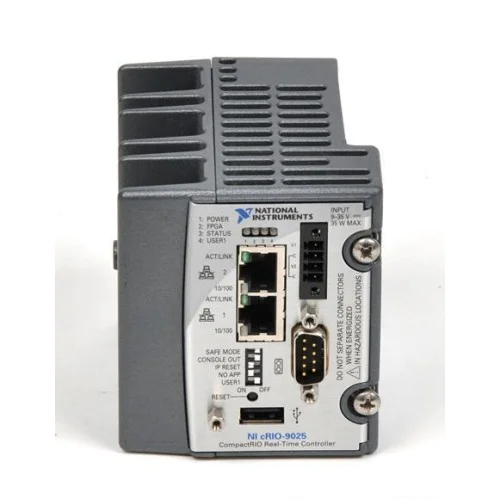

National Instruments CRIO-9025 Embedded real-time controller
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9025

The NI cRIO-9025 is an embedded real-time CompactRIO controller for control and monitoring. It uses an 800 MHz PowerPC processor and requires a compatible separate chassis for C Series I/O.

ManufacturerNational Instruments
ModelCRIO-9025
Part Number781313-01 · 781313-02
Product TypeEmbedded real-time controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CRIO-9025

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompactRIO
Processor800 MHz PowerPC
Memory / storage512 MB DRAM / 4 GB storage
Operating systemVxWorks
I/O arrangementSeparate compatible chassis; no integrated C Series slots
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9025 provides the real-time processing element in a modular CompactRIO system. It is a controller, not a C Series I/O module or an integrated eight-slot chassis.

Its VxWorks operating system distinguishes it from NI Linux Real-Time controllers. Software selection should therefore account for this target architecture; NI specifically excludes this controller from LabVIEW OPC UA Toolkit support.

  • Fanless embedded controller design.
  • 800 MHz PowerPC processing with 512 MB DRAM and 4 GB storage.
  • Two Ethernet ports, one USB port and one RS-232 serial port.
  • Programmable using LabVIEW Real-Time.
Verified specifications

Technical data

Verified product specifications.

Processor architecturePowerPC
CPU frequency800 MHz
DRAM512 MB
Storage capacity4 GB
Operating systemVxWorks
Ethernet ports2 ports
USB ports1 port
Serial interface1 RS-232 port
Operating temperature-40 to 70; mounting requirements apply °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Modular embedded control platform

cRIO-9025

Real-time controller

I/O expansion

C Series I/O requires a compatible separate CompactRIO chassis.

Confirm chassis and software-version support before configuring a system; this is a VxWorks target.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9025 Product PageProduct Page · ni.com
Open →
NI cRIO-9025 User Manual and SpecificationsUser Manual And Specifications · download.ni.com
Open →
NI: OPC UA Toolkit Support for cRIO-9025Technical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the cRIO-9025 include I/O slots?

No. C Series modules require a separate compatible CompactRIO chassis.

Does the cRIO-9025 run NI Linux Real-Time?

No. It runs VxWorks.

Can I use the LabVIEW OPC UA Toolkit on this controller?

NI states that the toolkit is not supported on the cRIO-9025 because its operating system is VxWorks.

How is the second Ethernet port configured?

Assign a static IP address in NI MAX on a different subnet from Ethernet port 1. Ethernet port 2 does not support DHCP.
