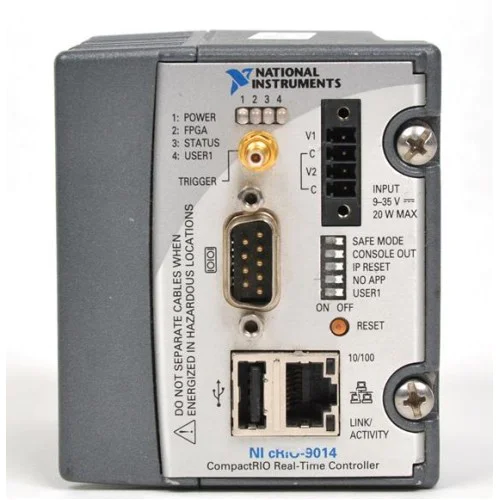

National Instruments CRIO-9014 Embedded real-time controller
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9014

The NI CRIO-9014 is a fanless CompactRIO real-time controller with a 400 MHz PowerPC processor. C Series I/O requires a compatible separate CompactRIO chassis.

ManufacturerNational Instruments
ModelCRIO-9014
Part Number779564-01 · 779564-02
Product TypeEmbedded real-time controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CRIO-9014

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Processor400 MHz PowerPC
Memory128 MB DRAM
Storage2 GB nonvolatile
ConnectivityOne Ethernet, one USB and one serial port
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The CRIO-9014 provides embedded processing for CompactRIO control and monitoring systems. It is a controller, not an I/O module or an integrated eight-slot chassis.

The controller supports embedded LabVIEW Real-Time applications and Ethernet-based host configuration through NI Measurement & Automation Explorer.

  • Fanless construction for embedded operation.
  • Separate-chassis architecture for C Series I/O.
  • SMB connector for digital I/O.
  • Dual power inputs with automatic selection of the higher-voltage supply.
Verified specifications

Technical data

Verified product specifications.

ProcessorPowerPC, 400 MHz
DRAM128 MB
Nonvolatile memory2 GB
Ethernet10Base-T / 100Base-TX; auto-negotiated 10/100 Mbps
RS-232 maximum baud rate115200 bps
USB maximum data rate12 Mb/s
Supply voltage at powerup9 to 35 VDC
Supply voltage after powerup6 to 35 VDC
Dimensions90.2 × 77.3 × 88.1 mm
Weight488 g
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Modular embedded control platform

CRIO-9014

Real-time controller

I/O expansion

Uses a compatible separate CompactRIO chassis; no integrated C Series slots.

Confirm the exact chassis and software versions before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9014 Product PageProduct Page · ni.com
Open →
NI cRIO-9012/9014 User Manual and SpecificationsUser Manual And Specifications · download.ni.com
Open →
cRIO-9014 Dimensional DrawingsDimensional Drawings · ni.com
Open →
cRIO-9014 Product CertificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the CRIO-9014 a CompactDAQ I/O module?

No. It is a CompactRIO embedded real-time controller.

Does the CRIO-9014 have eight integrated I/O slots?

No. C Series modules require a compatible separate CompactRIO chassis.

What USB devices does it support?

The manual specifies USB mass-storage devices formatted with FAT16 or FAT32, not general-purpose USB peripherals.
