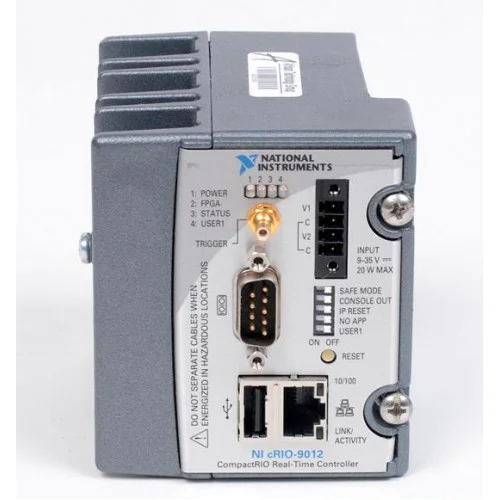

National Instruments CRIO-9012 Embedded real-time controller
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9012

The NI cRIO-9012 is a fanless embedded real-time controller for CompactRIO control and monitoring systems. C Series I/O requires a separate compatible CompactRIO chassis.

ManufacturerNational Instruments
ModelCRIO-9012
Part Number779563-01 · 196267-01
Product TypeEmbedded real-time controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CRIO-9012

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Processor400 MHz CPU
Memory64 MB DRAM
Storage128 MB nonvolatile memory minimum
ConnectivityOne Ethernet, one USB and one RS-232 port
I/O architectureNo integrated C Series module slots
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9012 provides the embedded processing element of a modular CompactRIO system. Its PowerPC-based design combines a 400 MHz CPU with 64 MB DRAM and 128 MB storage.

The controller mounts onto a separate reconfigurable embedded chassis. Ethernet provides host communication, while USB mass storage and RS-232 support peripheral connections.

  • Fanless embedded controller for control and monitoring.
  • Modular CompactRIO architecture with a separate I/O chassis.
  • Supports stand-alone LabVIEW Real-Time startup applications.
  • Dual power inputs with automatic source selection.
Verified specifications

Technical data

Verified product specifications.

Processor architecturePowerPC
CPU frequency400 MHz
DRAM64 MB
Nonvolatile memory128 minimum MB
EthernetOne port; 10Base-T/100Base-TX
RS-232 maximum baud rate115200 bps
USB maximum data rate12 Mb/s
Supply voltage9–35 at powerup; 6–35 after powerup V DC
Maximum controller-only power consumption6 W
Dimensions90.2 × 77.3 × 88.1 mm
Weight488 g
Operating temperature-40 to 70; observe chassis installation requirements °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Modular embedded control platform

cRIO-9012

Real-time controller

I/O expansion

Separate compatible CompactRIO chassis required for C Series modules.

Confirm the exact chassis and software-version support before system integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9012 Product PageManufacturer Product Page · ni.com
Open →
NI cRIO-9012/9014 User Manual and SpecificationsUser Manual And Specifications · download.ni.com
Open →
Troubleshooting cRIO-9012 Connections in MAX and LabVIEWTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cRIO-9012 an I/O module?

No. It is a CompactRIO embedded real-time controller, not a C Series I/O module.

Does it have eight built-in module slots?

No. It has no integrated C Series slots; module slots are provided by a separate compatible chassis.

Which USB devices are supported?

The manual specifies USB mass-storage devices formatted with FAT16 or FAT32, not other USB device types.
