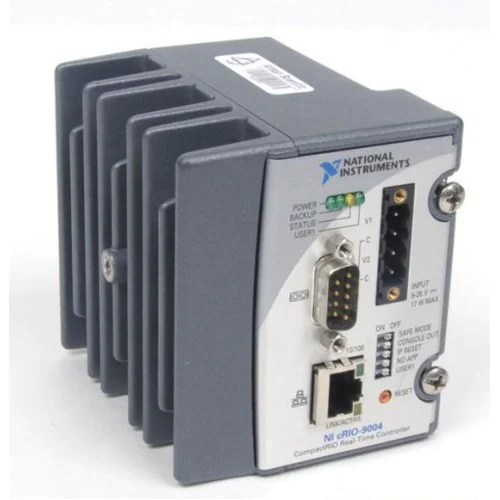

The NI CRIO-9004 is a CompactRIO real-time embedded controller with 64 MB DRAM and 512 MB nonvolatile memory.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The controller mounts on a separate CompactRIO reconfigurable embedded chassis. Ethernet connects it to the host computer; LabVIEW Real-Time applications can run at startup.
Verified product specifications.
| DRAM | 64 MB |
|---|---|
| Nonvolatile memory | 512 MB |
| Ethernet interface | 10Base-T / 100Base-TX |
| Maximum serial baud rate | 115200 bps |
| Supply voltage at powerup | 9 to 35 VDC |
| Supply voltage after powerup | 6 to 35 VDC |
| Controller-only maximum power consumption | 7 W |
| Dimensions | 90.2 × 77.3 × 88.1 mm |
| Weight | 488 g |
| Operating temperature | -40 to 70; subject to chassis installation requirements °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Embedded control platform
Real-time controller
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It is a controller for a separate CompactRIO chassis.
The CRIO-9004 has 64 MB DRAM and 512 MB nonvolatile memory; the CRIO-9002 has 32 MB DRAM and 64 MB nonvolatile memory.
