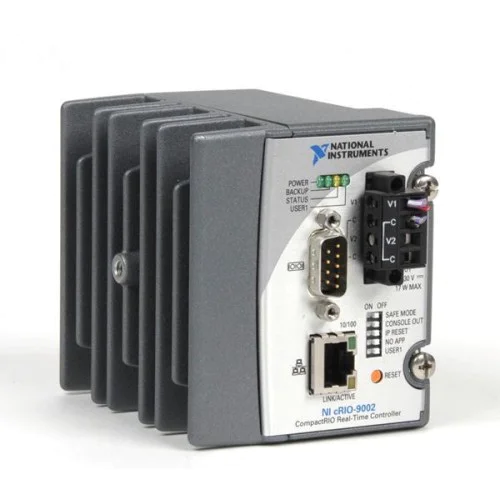

National Instruments CRIO-9002 Real-time embedded controller
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9002

The National Instruments cRIO-9002 is a CompactRIO real-time embedded controller with a 195 MHz CPU, 32 MB DRAM and 64 MB storage. C Series I/O requires a separate compatible CompactRIO chassis.

ManufacturerNational Instruments
ModelCRIO-9002
Part Number779000-01
Product TypeReal-time embedded controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CRIO-9002

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompactRIO
CPU195 MHz
Memory32 MB DRAM; 64 MB nonvolatile memory
ConnectivityOne Ethernet port; one RS-232 port
Operating temperature-40 to 70 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9002 provides embedded real-time control and monitoring within the CompactRIO platform. Its fanless design includes Ethernet and serial connectivity.

This is a controller, not an I/O module or integrated eight-slot system. It connects to a separate compatible CompactRIO chassis for C Series I/O.

  • 195 MHz CPU for embedded real-time operation.
  • Fanless controller construction.
  • 10/100 Mbps auto-negotiated Ethernet.
  • RS-232 serial communication up to 115,200 bps.
  • Configurable stand-alone LabVIEW Real-Time startup applications.
Verified specifications

Technical data

Verified product specifications.

CPU frequency195 MHz
DRAM32 MB
Nonvolatile memory64 MB
Ethernet interface10Base-T / 100Base-TX; IEEE 802.3
Serial interfaceRS-232, DB-9
Operating temperature-40 to 70 °C
Dimensions90.2 × 77.3 × 88.1 mm
Weight488 g
Supply voltage at powerup9 to 35 VDC
Supply voltage after powerup6 to 35 VDC
Controller-only maximum power consumption7 W
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control platform

cRIO-9002

Real-time controller

I/O architecture

Separate compatible chassis and C Series modules; no integrated I/O slots.

Confirm the specific chassis and software versions before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9002 Product SupportOfficial Product Page · ni.com
Open →
NI cRIO-9002/9004 User Manual and SpecificationsUser Manual And Specifications · docs-be.ni.com
Open →
cRIO-9002 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
cRIO-9002 Dimensional Drawings and CAD ResourcesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

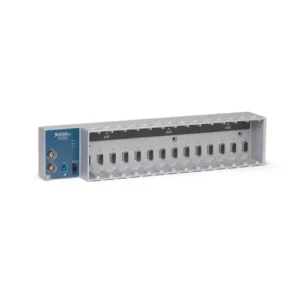

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the cRIO-9002 include eight I/O slots?

No. It has no integrated C Series I/O slots; a separate compatible CompactRIO chassis is required.

How much memory does the cRIO-9002 have?

It has 32 MB DRAM and 64 MB nonvolatile memory.

How does it differ from the cRIO-9004?

The shared manual specifies 64 MB DRAM and 512 MB nonvolatile memory for the cRIO-9004, versus 32 MB and 64 MB respectively for the cRIO-9002.
