National Instruments CPS-8910 Cabled PCI Express switch

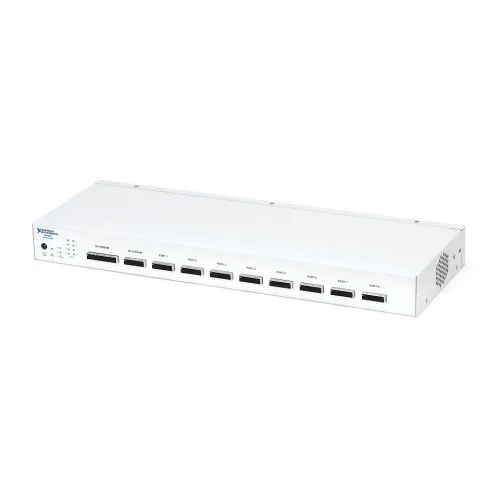

1 image: Click to enlarge

National Instruments · PCI Express / PXI Express

CPS-8910

The NI CPS-8910 is a cabled PCI Express switch for expanding PXI Express and software-defined radio systems. It provides two alternative upstream connections and eight downstream ports for multichannel MIMO configurations.

ManufacturerNational Instruments

ModelCPS-8910

Part Number784307-01

Product TypeCabled PCI Express switch

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CPS-8910

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Part number784307-01

Form factor1U rack-mountable external switch

Upstream selectionGen 2 x8 or Gen 1 x4; one active at a time

Downstream connectionsEight Gen 1 x4 PCI Express ports

DC input12 V ±5%

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The CPS-8910 provides PCI Express connectivity for large MIMO systems, rather than analog or digital measurement channels. NI describes its use with software-defined radio reconfigurable devices and configurations containing multiple switches connected to a PXI Express chassis.

Choose the upstream interface around the host hardware and aggregate data rate. NI specifies upstream bandwidth limits of 3.2 GB/s for Gen 2 x8 and 832 MB/s for Gen 1 x4, shared across the attached USRP devices.

Connects multiple USRP devices through one MXI-Express host interface.
Offers alternative x8 and x4 upstream interfaces for different host configurations.
Supports copper and fiber-optic connections, subject to interface and configuration requirements.
Provides front- and rear-panel connection-status indicators.

Verified specifications

Technical data

Verified product specifications.

Upstream connectors	One Gen 2 x8 and one Gen 1 x4 PCI Express; mutual lockout
Downstream connectors	Eight Gen 1 x4 PCI Express
DC input tolerance	12 V ±5%
Power consumption with copper cables	20 W
Power consumption with fiber-optic cables	54 W
Dimensions (H × W × D)	44.5 × 432 × 304 mm
Maximum copper cable length	x8 upstream: 2 m; x4 upstream and downstream: 7 m
Operating temperature	0 to 55 °C
Operating humidity	10 to 90, noncondensing % RH

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

MXI-Express / PCI Express

Host-to-device expansion interface

CPS-8910

Switch between a host interface and multiple downstream devices

System role

MIMO expansion and data aggregation

Use only one upstream port at a time; fiber connections require the appropriate host interface, cable, and configuration.
