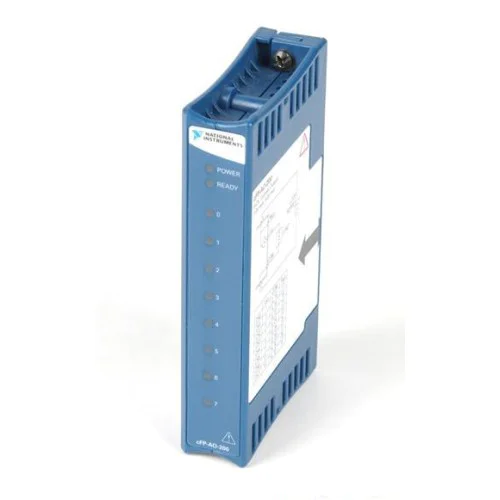

National Instruments CFP-AO-200 Analog current output module
1 image: Click to enlarge
National Instruments · Compact FieldPoint

CFP-AO-200

The NI CFP-AO-200 is an eight-channel Compact FieldPoint current output module supporting 0–20 mA signals.

ManufacturerNational Instruments
ModelCFP-AO-200
Part Number777318-200
Product TypeAnalog current output module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-AO-200

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompact FieldPoint
Outputs8 current channels
Resolution12-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This module provides current outputs within the Compact FieldPoint platform. NI distinguishes it from the CFP-AO-210, which provides voltage outputs.

  • Independently selectable channel ranges.
  • Per-channel open-loop indicators.
  • Short-circuit-protected outputs.
Verified specifications

Technical data

Verified product specifications.

Output channels8, single-ended
Nominal output ranges0–20 or 4–20 mA
Resolution12 bit
External loop supply5–24 VDC
Load capacityUp to 1 kΩ with 24 VDC supply
Maximum conversion rate200 updates/s
Operating temperature−40 to 70 °C
Channel-to-channel isolationNone
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Modular I/O platform

CFP-AO-200

Current output module

Compatibility

Designed for Compact FieldPoint cFP-BP-x backplanes.

Requires external loop power; channels are not isolated from one another.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-AO-200 and cFP-AO-200 Operating InstructionsOperating Instructions · download.ni.com
Open →
NI Compact FieldPoint to CompactRIO Migration GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Compact FieldPoint

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the CFP-AO-200 a voltage output module?

No. It provides current outputs. NI identifies the CFP-AO-210 as the voltage output model.

How is the module installed and wired?

It mounts on a cFP-BP-x backplane and uses a cFP-CB-x connector block for field wiring.
