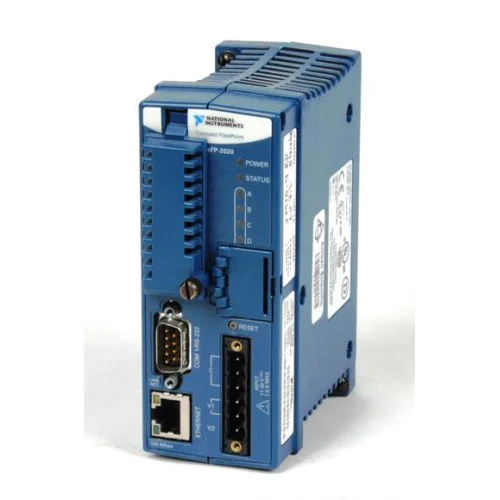

National Instruments CFP-2020 LabVIEW Real-Time/Ethernet network controller
1 image: Click to enlarge
National Instruments · Compact FieldPoint

CFP-2020

The NI CFP-2020 is a Compact FieldPoint LabVIEW Real-Time controller with Ethernet networking and serial interfaces for distributed measurement and control.

ManufacturerNational Instruments
ModelCFP-2020
Part Number777317-2020
Product TypeLabVIEW Real-Time/Ethernet network controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-2020

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Memory32 MB DRAM and 32 MB onboard nonvolatile memory
Serial interfacesThree RS-232 ports and one RS-485 port
Ethernet10/100 Mbps, auto-negotiated
Supply voltage11–30 VDC
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The CFP-2020 executes embedded LabVIEW Real-Time applications within a modular Compact FieldPoint system. Its onboard memory and serial connectivity support local control, communications and data handling.

The controller mounts on a cFP-BP-x backplane. Separate I/O modules and connector blocks provide field-signal connections.

  • Embedded LabVIEW Real-Time execution.
  • RS-232 and RS-485 communications.
  • Removable CompactFlash storage support.
Verified specifications

Technical data

Verified product specifications.

Manufacturer part number777317-2020
DRAM32 MB
Onboard nonvolatile memory32 MB
RS-232 ports3 ports
RS-485 ports1 port
Network interface10BaseT / 100BaseTX Ethernet
Power supply range11–30 VDC
Maximum power to connected I/O modules9 W
Operating temperature-25 to 60 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Distributed measurement and control platform

CFP-2020

Real-time controller

Backplanes

cFP-BP-4 or cFP-BP-8

Confirm legacy software requirements before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

cFP-20xx Quick Start GuideQuick Start Guide And Specifications · docs-be.ni.com
Open →
Compact FieldPoint — Productividad y AnálisisProduct Brochure (Spanish) · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
CFP-BP-4View product →
Related model
CFP-BP-8View product →

Explore equipment

Compact FieldPoint

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the CFP-2020 an I/O module?

No. NI identifies it as a LabVIEW Real-Time/Ethernet network controller.

Which serial ports does it provide?

Three RS-232 ports and one RS-485 port.

Does it support Gigabit Ethernet?

No. The documented interface is 10BaseT/100BaseTX Ethernet.
