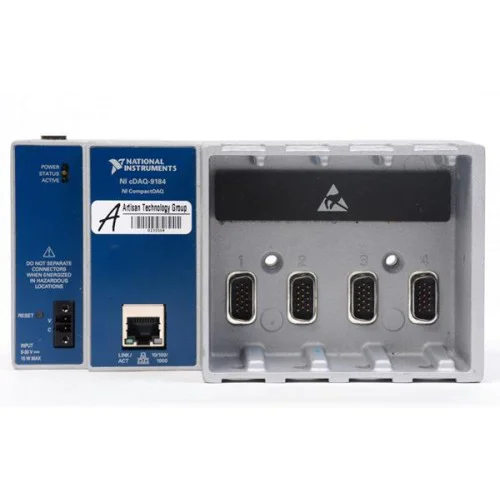

National Instruments cDAQ-9184 4-slot Ethernet data acquisition chassis
1 image: Click to enlarge
National Instruments · CompactDAQ

CDAQ-9184

The NI cDAQ-9184 is a four-slot Ethernet CompactDAQ chassis for remote or distributed sensor measurements. It manages timing, synchronization, and data transfer between installed C Series I/O modules and an external host.

ManufacturerNational Instruments
ModelcDAQ-9184
Part Number782069-01
Product Type4-slot Ethernet data acquisition chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cDAQ-9184

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Module slots4 C Series slots
Ethernet rates10/100/1000 Mbps, auto-negotiated
Power input9–30 VDC
Operating temperature-20 to 55 °C, subject to mounting and power-supply requirements
Counters/timers4 built-in counters, 32-bit resolution
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cDAQ-9184 is a chassis rather than a standalone I/O module. Installed C Series modules provide the measurement interfaces, allowing a system to combine analog I/O, digital I/O, and counter/timer measurements.

Ethernet communication uses NI-DAQmx. The chassis is not a direct Modbus or EtherNet/IP endpoint.

  • Four slots for C Series I/O modules.
  • Four 32-bit general-purpose counters accessed through an installed hardware-timed digital C Series module.
  • Seven simultaneous hardware-timed operations, including three independent analog input rates.
  • DHCP, static IP, and link-local network configuration options.
Verified specifications

Technical data

Verified product specifications.

Slot count4 slots
Ethernet communication rates10/100/1000, auto-negotiated Mbps
Maximum Ethernet cable distance100 per segment m
DC input voltage9–30 VDC
Operating temperature-20 to 55; mounting and power-supply conditions apply °C
Unloaded dimensions178.1 × 88.1 × 64.3 mm
Unloaded massApproximately 643 g
General-purpose counters4 counters
Counter resolution32 bits
Analog input channel count and maximum sample rateDetermined by installed C Series modules; performance also depends on task channel count
IEEE 802.1AS network synchronizationNot supported
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ

Modular data acquisition platform

cDAQ-9184

Ethernet chassis hosting four C Series modules

Measurement modules

Select C Series modules for the required signals; consult individual module specifications.

Confirm module and driver support for the intended system; shared CompactDAQ branding does not establish interchangeability.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cDAQ-9184 Product PageProduct Page · ni.com
Open →
cDAQ-9184 SpecificationsSpecifications · ni.com
Open →
NI cDAQ-9181/9184/9188/9191 User ManualUser Manual PDF · download.ni.com
Open →
Firmware Information for NI CompactDAQ Network ChassisTechnical resource
Open →
Connecting to Remote Ethernet CompactDAQ Chassis from NI MAXTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
cDAQ-9181View product →
Related model
cDAQ-9185View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the cDAQ-9184 communicate directly using Modbus or EtherNet/IP?

No. NI specifies NI-DAQmx as the communication driver for Ethernet cDAQ devices, rather than direct industrial-protocol communication.

What installation conditions apply near the temperature limits?

Below 0 °C, use a power supply rated for that temperature. From 45 to 55 °C, NI requires horizontal mounting to a metal panel or surface.
