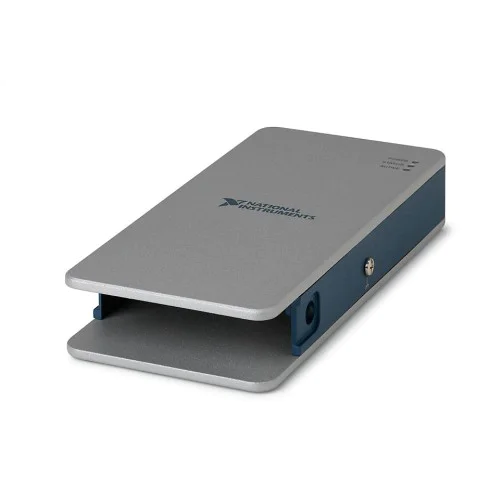

NI (National Instruments) cDAQ-9181 1-Slot, Ethernet CompactDAQ Chassis

1 image: Click to enlarge

NI (National Instruments) · Ethernet

cDAQ-9181

The NI cDAQ-9181 is a 1-slot Ethernet CompactDAQ chassis for distributed sensor measurement systems. It manages timing and data transfer between an installed C Series I/O module and an external host.

ManufacturerNI (National Instruments)

ModelcDAQ-9181

Part Number781496-01 · 782052-01

Product Type1-Slot, Ethernet CompactDAQ Chassis

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cDAQ-9181

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Slot Count1

Bus ConnectionEthernet

Operating Temperature Range0 °C to 55 °C

Onboard TriggerNo

Synchronization EnabledNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The cDAQ-9181 provides a single C Series module slot with an Ethernet connection to an external host. It is a CompactDAQ chassis, rather than a standalone I/O module; the installed module determines the measurement connections and I/O capabilities.

C Series module options support analog I/O, digital I/O and counter/timer measurements. The chassis also provides four 32-bit general-purpose counters/timers, accessed through an installed, hardware-timed digital C Series module.

Single-slot CompactDAQ architecture for a C Series I/O module.
Ethernet bus connection for communication with an external host.
Manages timing and data transfer between the installed module and host.
Four 32-bit general-purpose counters/timers support functions including event counting, quadrature encoder measurements, PWM and pulse train generation through an installed, hardware-timed digital C Series module.
Specified operating temperature range of 0 °C to 55 °C.

Verified specifications

Technical data

Verified product specifications.

Slot Count	1
Bus Connection	Ethernet
Operating Temperature Range	0 °C to 55 °C
Onboard Trigger	No
Synchronization Enabled	No
NI part numbers	781496-01, 782052-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Ethernet

Bus Connection

cDAQ-9181

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cDAQ-9181 a chassis or an I/O module?

The cDAQ-9181 is a 1-slot Ethernet CompactDAQ chassis. It accepts a C Series I/O module, which determines the measurement connections and I/O capabilities.

How does the cDAQ-9181 connect to a host?

The cDAQ-9181 uses an Ethernet bus connection to communicate with an external host.

What is the operating temperature range?

The verified operating temperature range is 0 °C to 55 °C.

Which NI part numbers are listed for the cDAQ-9181?

The supplied verified identity data lists NI part numbers 781496-01 and 782052-01.

How are the chassis counters/timers accessed?

The four 32-bit general-purpose counters/timers are accessed through an installed, hardware-timed digital C Series module.
