National Instruments AT-DIO-32F Digital I/O board

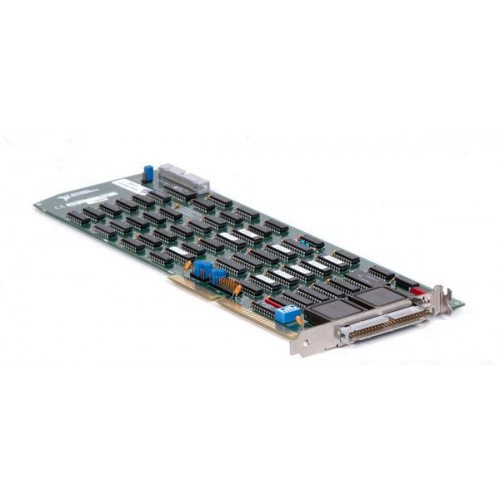

1 image: Click to enlarge

National Instruments · PC AT bus

AT-DIO-32F

The National Instruments AT-DIO-32F is a 32-channel AT-bus digital I/O board with 5 V TTL/CMOS signaling and handshaking. It belongs to the Traditional NI-DAQ legacy software ecosystem rather than NI-DAQmx.

ManufacturerNational Instruments

ModelAT-DIO-32F

Product TypeDigital I/O board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: AT-DIO-32F

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Digital I/O32 channels

Signal standard5 V TTL/CMOS

Host interfacePC AT bus

Data transferDigital handshaking supported

Driver ecosystemTraditional NI-DAQ; not NI-DAQmx

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The AT-DIO-32F provides parallel digital input and output for PC AT-bus systems. NI identifies it as a high-speed digital I/O and handshaking device with 32 channels and 5 V TTL/CMOS signaling.

NI's archived programming reference describes four primary 8-bit ports, configurable for reading or writing, with handshaking modes and DMA transfer support. Integration requires attention to the legacy host and software environment: NI lists the board as supported only by Traditional NI-DAQ, not NI-DAQmx.

32-channel digital I/O using 5 V TTL/CMOS signaling.
Four primary 8-bit ports numbered 0 through 3, supporting read or write operation.
Programmable handshaking modes for primary digital ports.
DMA support for digital transfer groups, including dual-channel DMA for groups containing port 0.

Verified specifications

Technical data

Verified product specifications.

Primary digital I/O channels	32 channels
Digital signal standard	5 V TTL/CMOS
Host bus	PC AT bus
Primary port organization	Four 8-bit ports, numbered 0–3
Primary port direction	Read or write
Driver support	Traditional NI-DAQ (Legacy); not supported by NI-DAQmx
