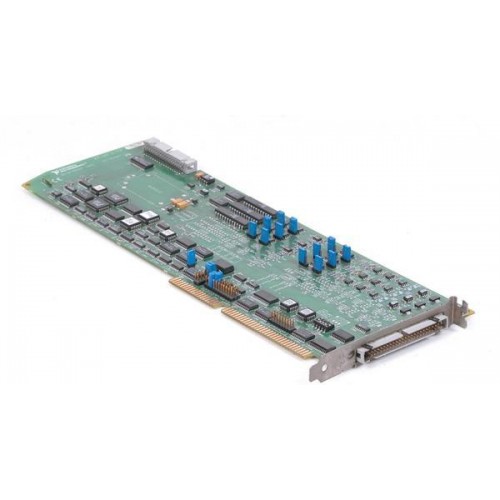

National Instruments AT-AO-6 Analog output board
1 image: Click to enlarge
National Instruments · Legacy ISA/PC/AT data acquisition

AT-AO-6

The National Instruments AT-AO-6 is a legacy analog output board with six 12-bit analog output channels and eight digital I/O lines. NI's NI-DAQ 7.4 documentation lists it as a Traditional NI-DAQ (Legacy) device rather than an NI-DAQmx device.

ManufacturerNational Instruments
ModelAT-AO-6
Product TypeAnalog output board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: AT-AO-6

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog outputs6 channels
Output resolution12-bit
Digital I/O8 lines
Voltage output ranges±10 V and 0 to 10 V; external-reference ranges also documented
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The AT-AO-6 belongs to NI's legacy ISA/PC/AT equipment range. Its six analog output channels are numbered 0 through 5, with 12-bit double-buffered digital-to-analog conversion.

NI's archived hardware-capability tables document voltage and current output ranges, buffered waveform output, and internal or external update timing. Software integration requires attention to the legacy driver API: the NI-DAQ 7.4 readme explicitly excludes this model from NI-DAQmx support.

  • Six analog output channels with 12-bit DAC resolution.
  • Eight digital I/O lines alongside the analog outputs.
  • Double-buffered DAC architecture with a 1 K FIFO for update-clock-1 channels.
  • External update-clock operation through the EXTUPDATE* signal.
Verified specifications

Technical data

Verified product specifications.

Analog output channels6 channels
DAC resolution12 bit
Digital I/O lines8 lines
Analog output channel numbering0 through 5
Documented voltage output ranges±10 V, 0 to 10 V, ±Vref1, and 0 to Vref1
Documented current output range4 to 20 mA
DAC bufferingDouble-buffered; 1 K FIFO for update-clock-1 channels
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Legacy ISA/PC/AT

Host interface platform

AT-AO-6

Six-channel analog output board

Driver API

NI-DAQ 7.4 lists AT-AO-6 under devices restricted to Traditional NI-DAQ (Legacy), not NI-DAQmx.

Check the host interface and exact legacy driver environment before integration; do not assume NI-DAQmx support.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-DAQ 7.4 ReadmeDriver Support Reference · download.ni.com
Open →
Archived LabVIEW Function and VI Reference ManualHardware Capability Reference · download.ni.com
Open →
Archived LabVIEW Data Acquisition Basics ManualProgramming And Timing Reference · download.ni.com
Open →
External update timing reference for AT-AO-6/10Technical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog output channels does the AT-AO-6 provide?

It provides six 12-bit analog output channels, numbered 0 through 5, plus eight digital I/O lines.

Does NI-DAQmx support the AT-AO-6?

NI's NI-DAQ 7.4 readme explicitly lists the AT-AO-6 as unsupported by NI-DAQmx and supported only through Traditional NI-DAQ (Legacy) in that release.

Can the AT-AO-6 use an external update clock?

Yes. NI's archived Data Acquisition Basics Manual identifies EXTUPDATE* as the external update-clock input signal for AT-AO-6/10 devices.
