National Instruments AT-5411 Arbitrary waveform generator

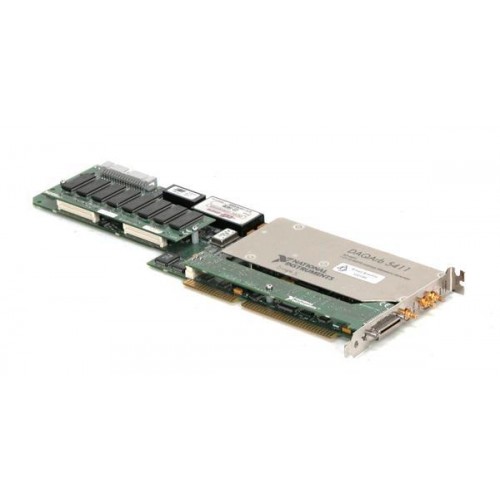

1 image: Click to enlarge

National Instruments · Not specified

AT-5411

The National Instruments AT-5411 is a waveform-generation device with a 12-bit DAC and a maximum update rate of 40 MHz. It supports arbitrary waveform and direct digital synthesis (DDS) modes.

ManufacturerNational Instruments

ModelAT-5411

Product TypeArbitrary waveform generator

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: AT-5411

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

DAC resolution12-bit

Maximum update rate40 MHz

Standard ARB memory2,000,000 16-bit samples

Digital outputs16 bits with clock signal

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

NI documents the AT-5411 in its 54xx hardware capabilities tables. Its waveform-generation resources include ARB and DDS memory, digital outputs, and RTSI triggering.

Output limits depend on termination: NI lists ±5 V into a 50 Ω load and ±10 V into an unterminated, high-input-impedance load, using the internal reference.

Double-buffered 12-bit DAC.
ARB waveform buffers start at 256 samples and must contain a multiple of eight samples.
Rising-edge TTL triggering through the trigger input connector or RTSI, plus software-generated triggering.

Verified specifications

Technical data

Verified product specifications.

DAC resolution	12 bit
Maximum update rate	40 MHz
Output limits into 50 Ω	±5, internal reference V
Output limits into high-impedance load	±10, unterminated, internal reference V
Standard ARB waveform memory	2,000,000 16-bit samples
Maximum DDS waveform memory	16,384 16-bit samples
Digital output width	16, with clock signal bit
RTSI trigger bus	Supported

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

54xx

Device family

AT-5411

Waveform-generation device

Confirm host interface, operating system, and driver requirements before system integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Archived LabVIEW Function and VI Reference Manual — Table B-16, 54xx DevicesHardware Capabilities Reference · download.ni.com

Open →

Archived LabVIEW Function and VI Reference Manual — Table A-14, 54xx DevicesHardware Capabilities Reference · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the AT-5411 DAC 12-bit or 16-bit?

NI specifies a 12-bit DAC. The 16-bit figure describes waveform memory samples and digital output width, not DAC resolution.

What waveform buffer size does DDS mode require?

DDS mode requires 16,384 samples. NI notes that loading fewer samples can cause unfilled memory contents to appear in the generated waveform.
