Astronics Test Systems PXIe-2461 Universal counter/timer module

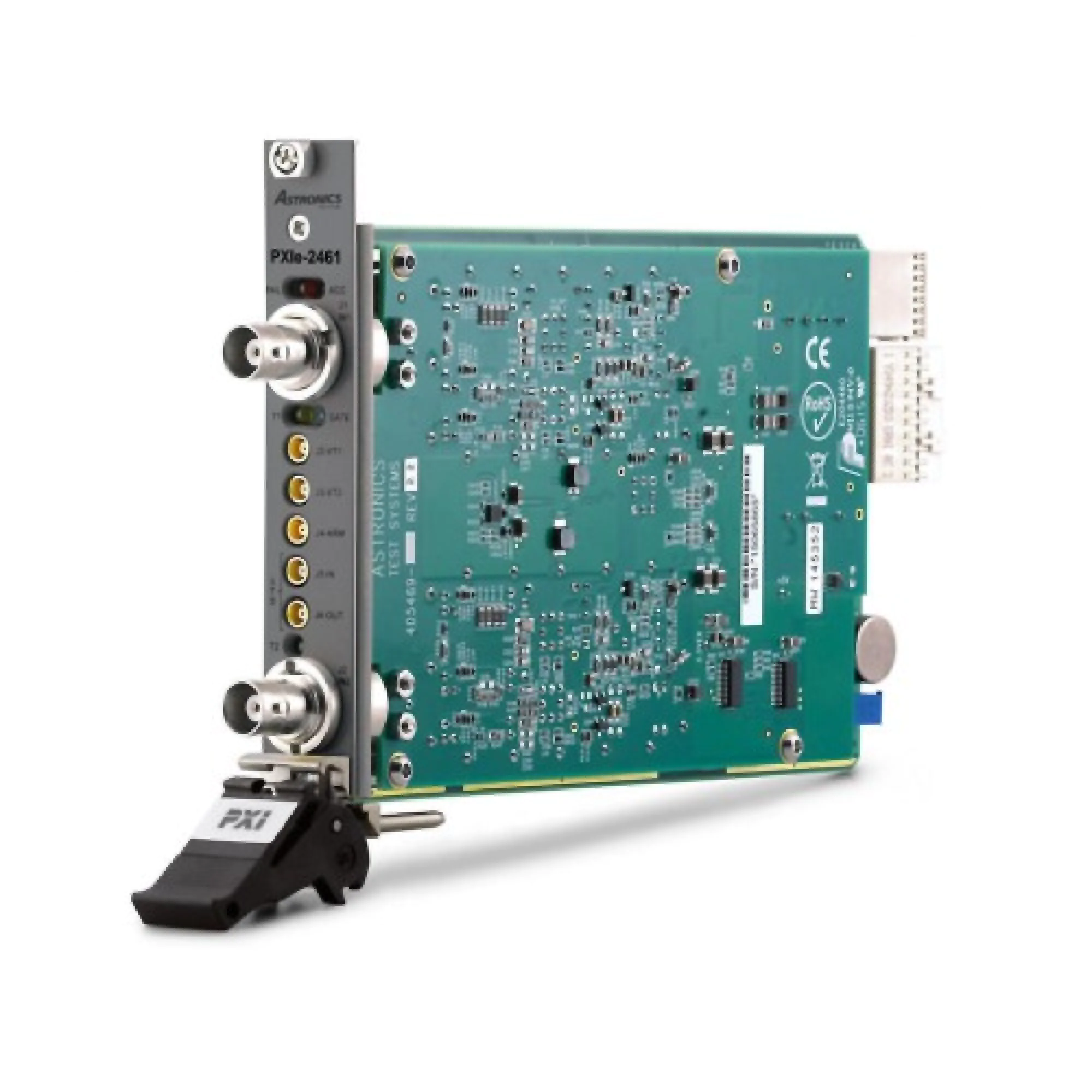

1 image: Click to enlarge
Astronics Test Systems · PXI Express

Astronics PXIe-2461

The Astronics PXIe-2461 is a two-channel universal counter/timer for frequency measurements up to 235 MHz. It occupies one PXI Express peripheral or hybrid slot and supports frequency, time interval, pulse, and phase measurements.

ManufacturerAstronics Test Systems
ModelPXIe-2461
Part Number784197-01 · 408619
Product TypeUniversal counter/timer module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2461

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels2
Maximum measured frequency235 MHz
Time interval resolution1 ns single-shot; 100 ps averaged
Voltage ranges±5.1 V and ±42 V
