National Instruments PCI-7811 Digital reconfigurable I/O device

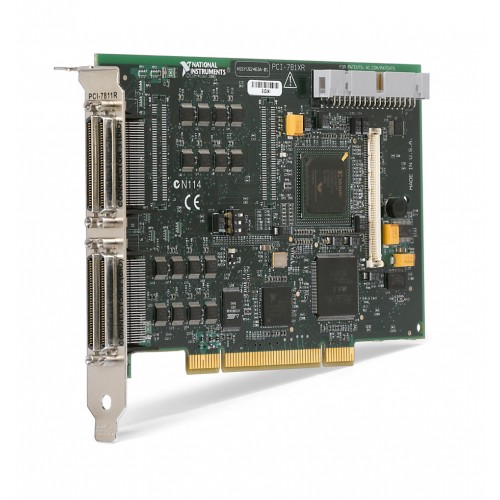

1 image: Click to enlarge
National Instruments · PCI

PCI-7811

The National Instruments PCI-7811 is a PCI digital reconfigurable I/O device with 160 bidirectional digital lines and a Virtex-II XC2V1000 FPGA. NI also identifies this hardware as PCI-7811R.

ManufacturerNational Instruments
ModelPCI-7811
Product TypeDigital reconfigurable I/O device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-7811

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCI
Digital I/O160 bidirectional lines
FPGA capacity1-million-gate Virtex-II; 5,120 slices
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-7811 uses a user-programmable FPGA to define digital I/O behavior and timing. Its four RDIO connectors each carry 40 digital lines.

NI lists the SHC68-68-RDIO cable and SCB-68 or SCB-68A connector blocks for PCI-7811 connections. Use the model-specific R Series pinout when wiring a connector block.

  • 160 bidirectional digital I/O lines.
  • Virtex-II FPGA with 1-million-gate capacity and 5,120 slices.
  • Custom FPGA functionality developed with the LabVIEW FPGA Module.
Verified specifications

Technical data

Verified product specifications.

Host interfacePCI
Bidirectional digital I/O160 lines
FPGAVirtex-II XC2V1000
FPGA gate capacity1000000 gates
FPGA slices5120 slices
RDIO connector arrangement4 connectors, 40 digital lines per connector
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

R Series / PCI

Hardware family and host interface

PCI-7811

Digital reconfigurable I/O device

Connection accessories

SHC68-68-RDIO cable with SCB-68 or SCB-68A connector block.

Use the PCI-7811 R Series pinout; connector-block labels vary by device model.
