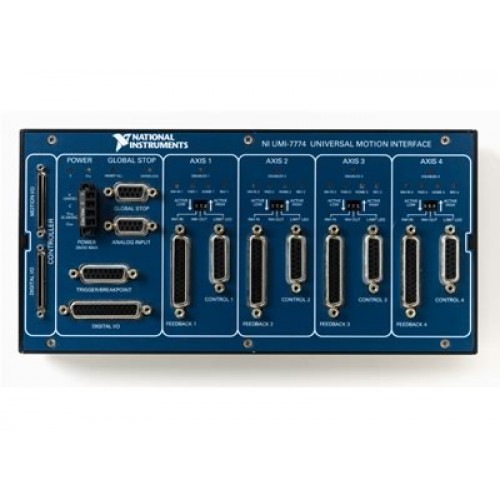

National Instruments UMI-7772, NI UMI-7774 Universal motion interface

1 image: Click to enlarge

National Instruments · NI 73xx motion control

NI UMI-7772, NI UMI-7774

The NI UMI-7772 and UMI-7774 are two-axis and four-axis universal motion interfaces, respectively. This catalog record covers both models.

ManufacturerNational Instruments

ModelUMI-7772, NI UMI-7774

Part Number778556-01 · 778558-01

Product TypeUniversal motion interface

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: UMI-7772, NI UMI-7774

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

UMI-77722 axes; part number 778556-01

UMI-77744 axes; part number 778558-01

Digital I/O8 inputs and 8 outputs

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

These standalone accessories connect NI 73xx motion controllers to third-party stepper or servo drives, feedback devices, and digital I/O.

Separate control and feedback D-Sub connectors per axis.
Global and per-axis status LEDs.
Panel, DIN rail, or rack mounting.

Verified specifications

Technical data

Verified product specifications.

UMI-7772 axis count	2 axes
UMI-7774 axis count	4 axes
Limit and home sensor compatibility	5–30 V
General-purpose digital inputs	8 inputs
General-purpose digital outputs	8 outputs

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI 73xx

Motion controller family

UMI-7772 / UMI-7774

Connectivity accessory

Compatibility

Designed for NI 73xx motion controllers; verify controller-specific cabling.

Confirm the required model and axis count. Optical isolation is not safety isolation; follow NI wiring instructions.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI UMI-7774/7772 User Guide and SpecificationsUser Guide And Specifications · docs-be.ni.com

Open →

Universal Motion Interface Product CertificationsProduct Certifications · ni.com

Open →

Using Limit and Home Switches with My NI Stepper DeviceTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How do the UMI-7772 and UMI-7774 differ?

The UMI-7772 supports two axes; the UMI-7774 supports four. NI identifies them as 778556-01 and 778558-01, respectively.

Can limit and home sensors connect to these interfaces?

Yes. Each axis has a 25-pin D-Sub feedback connector for incremental encoders, limits, and home sensors.
