NI (National Instruments) PCI-5402 20 MHz Bandwidth, 14-Bit Waveform Generator Device

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

PCI-5402

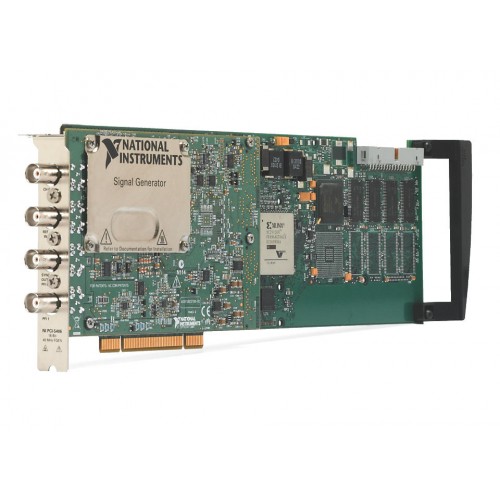

The NI PCI-5402 is a 20 MHz bandwidth, 14-bit waveform generator with one analog output channel and a PCI bus connection. It generates standard waveforms rather than user-defined arbitrary waveforms.

ManufacturerNI (National Instruments)

ModelPCI-5402

Part Number779656-01

Product Type20 MHz Bandwidth, 14-Bit Waveform Generator Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-5402

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Bandwidth20 MHz

Analog Output Onboard Memory Size32 kB

Analog Output Resolution14 bits

Supported Hardware PlatformComputer-Based Device

Bus ConnectionPCI

Supports Arbitrary WaveformsNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-5402 is a computer-based waveform generator that uses direct digital synthesis to generate sine, square, triangle and ramp functions, as well as pseudorandom noise and DC signals.

Its single analog output provides 14-bit resolution and a maximum analog update rate of 100 MS/s. The device has 32 kB of onboard analog output memory and a listed analog output voltage range of -10 V to 10 V. Arbitrary waveform generation and scripting are not supported.

20 MHz maximum bandwidth.
Single analog output channel with 14-bit resolution.
100 MS/s maximum analog update rate.
Standard sine, square, triangle and ramp generation, plus pseudorandom noise and DC signals.
PCI bus interface for a computer-based system.
No arbitrary waveform or scripting support.

Verified specifications

Technical data

Verified product specifications.

Maximum Bandwidth	20 MHz
Analog Output Onboard Memory Size	32 kB
Analog Output Resolution	14 bits
Supports Arbitrary Waveforms	No
Supported Hardware Platform	Computer-Based Device
Bus Connection	PCI
Analog Output Voltage Range	-10 V to 10 V
Maximum Analog Update Rate	100 MS/s
Number of Output Channels	1
Supports Scripting	No
NI part numbers	779656-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCI-5402

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What waveforms can the PCI-5402 generate?

It generates sine, square, triangle and ramp functions, along with pseudorandom noise and DC signals.

Does the PCI-5402 support arbitrary waveforms or scripting?

No. The existing verified specifications list both arbitrary waveform support and scripting support as No.

What are the output resolution and maximum update rate?

The PCI-5402 provides 14-bit analog output resolution and a maximum analog update rate of 100 MS/s.

How many output channels does the PCI-5402 have?

It has one analog output channel, with a listed voltage range of -10 V to 10 V.

What host interface does the PCI-5402 use?

The PCI-5402 uses a PCI bus connection for installation in a computer-based system. Check the official documentation for host and software requirements.
